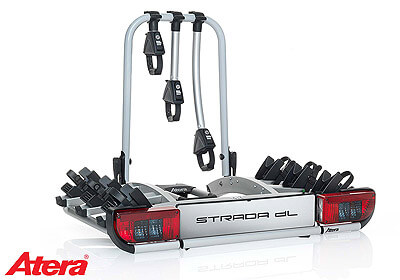

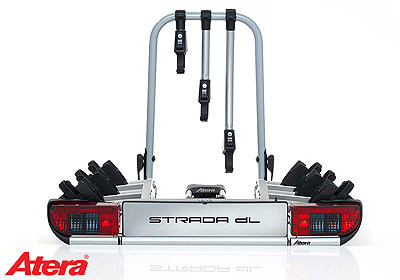

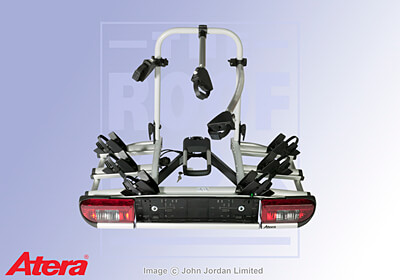

Atera STRADA DL 3 to 4 bike carrier (UK lights)...

We reckon that Atera's STRADA DL tilting carriers are the best designed and best engineered tow ball carriers on the market, bar none. This page shows the 3 bike version; an adapter (listed below) can be added for carrying a 4th bike. Apart from its all round style, what's so special about the STRADA DL?

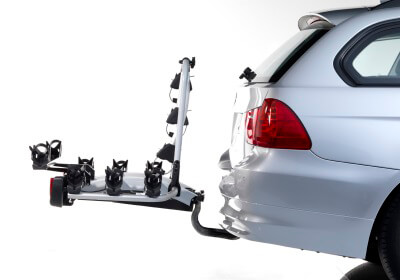

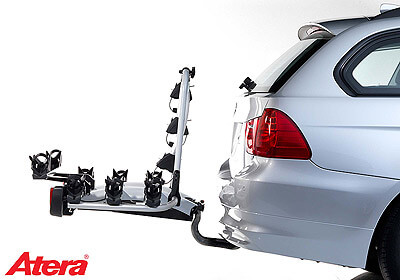

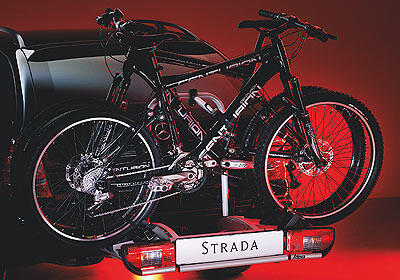

(1) Fundamentally, it slides away from the vehicle, rather than tilting, i.e. the bike carrier takes the weight of the bikes, rather than you, and there's tailgate clearance even for vehicles with vertical tailgates. It's by far and away the easiest tilting carrier to use.

(2) It fits to 'bolt on' or 'swan neck' tow balls (including detachable tow bars) without any adjustment; you just place it on the tow ball and push down the handle - no spanners or Allen keys are required.

(3) It's very easy to carry - it won't bump your shins if carried properly - and as soon as you place it on the tow ball the weight is taken, so you can straighten up and rest your back. Other carriers require you to support the platform with one hand while fiddling with the fixing system with the other.

(4) It's much the lightest of the 4 bike tilting wheel support racks on the market.

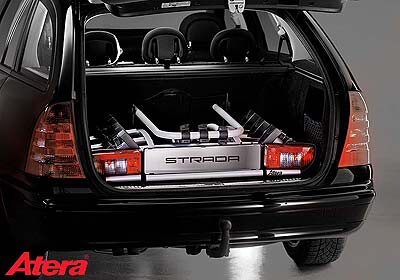

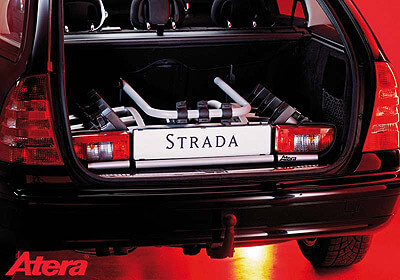

(5) Furthermore, it's the most compact 3 to 4 bike carrier available. At only 1 metre wide it should fit into most if not all car boots, allowing you to park safely without risk of the bike carrier being damaged. You only need to flick up a couple of cam levers to fold the upright bike holder support.

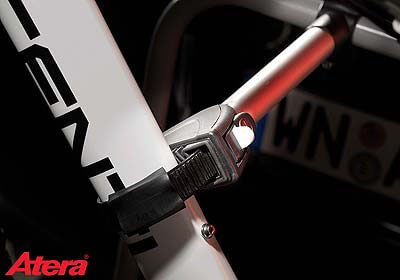

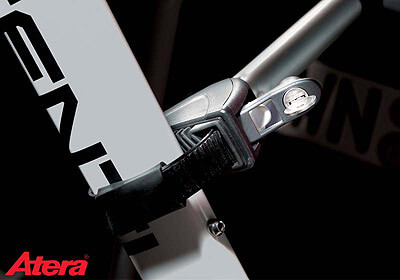

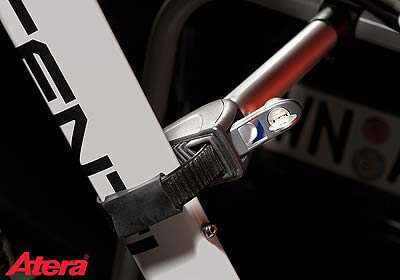

(6) The bike frame holders are also without a doubt the best available, incorporating a ratchet tightening mechanism. They fit oval and other outsize frames as well as round ones, wrapping a strap right around the frame for safety and security. (This looks like a simple plastic strap, but it is in fact 'sandwiched' around a spring steel core.) All bike holders have swivel joints, and the long holder has a slight curve in the aluminium support rod to increase the opportunities available. We haven't yet come across any combination of bike sizes and styles that can't easily be locked into place (using the same key which locks the whole unit to the tow ball).

(7) The frame is triangular which allows you, when the bikes have been slid out of the way, to stand almost right up against the tow ball. This means you can lift items into and out of the boot both safely and easily. This is not a trivial benefit - most other bike carriers have rectangular frames and although you may be able to open the tailgate easily enough, you usually have to lean across the bike carrier frame to reach the boot space, which is definitely not ergonomic.

(8) The fog lights on this special 'GB' version - which will work if you have a continental '13 pin' socket - are UK legal, i.e. the fog light is on the right / offside of the car. Other bike carriers with fog lights have these on the left / nearside of the car, which is illegal, (even when the car is used on continental roads!) Atera gets around this problem by using the lighting rig which they supply for BMW bike carriers. This includes a fog light on both sides, and there is nothing illegal about this!

It makes sense when using this carrier to place a safety strap around all the bikes and the bike holder support frame. We're therefore providing a free strap with each carrier - one strap per carrier. As well as providing peace of mind the strap will also help to minimise vibration. We've reduced the price of the carrier by 10p to allow for this.

Technical and miscellaneous:

• Weight of carrier: 14.5kg
• Maximum payload: 60kg
• Approximate dimensions when folded: 1000 x 250 x 720 mm
• The wheels are held in place with quick fit polypropylene straps which suit all rim and tyre sizes.
• The STRADA DL has five function rear lights so it is fitted with a 13 pin plug for 13 pin continental type electric sockets. If you have a 7 pin socket you will need the Lighting adapter '13 pin' (rack) to 7 pin (car) listed below. If you need one of these remember to tick the box below to add this to your order.

  (If you have a 7 pin socket the reversing light and fog light will not work. The 7 pin socket isn't wired for these functions.)

Note for vehicles with a rear mounted spare wheel: You may not be able to fit the STRADA DL to vehicles with a rear mounted spare wheel - you usually need to remove the spare wheel. This will allow you (1) to fit the carrier onto the vehicle (the upright usually hits the spare wheel), (2) to fit all the bikes onto the carrier, (3) to remove the carrier after use (the removal handle usually clashes with a spare wheel).

You'll need a lighting adapter if your vehicle has a standard UK style 7 pin socket - buy a STRADA DL 3 from us by 31st May 2013 and we'll give you this for free, saving up to £20 at typical prices! Tick the Free lighting adapter box if you want one.

Made in Germany.

This video shows off the features of the Atera STRADA DL 2 as well as providing an overview of the fitting process. The STRADA DL 3 has the same features.

Click here to view it.

Technical specifications at a glance:

Max number of bikes: 3 (4 with adapter 2611, shown below)

Fits bolt on tow ball: yes

Fits swan neck / detachable tow ball: yes

Dimensions: 100cm (width) x 72cm (depth)

Weights: 14.5kg (+2.0kg with 4th bike adapter)

Max load weights: 45kg (63kg with 4th bike adapter). These are the loading weights excluding the weight of the bike carrier (see above)

Max wheelbase: 120cm

Distance between bikes: 18cm

Tilting: yes

Integral lighting board: yes

Lighting board plug type: 13 pin (7 pin adapter available if required; shown below)

Bike carrier to tow ball lock: yes

Bike carrier to bike lock: yes

Possible to tow when in use: no

Fits with a spare wheel: no

Guarantee: 3 years

Useful information:

The maximum permitted load you can carry is also determined by your nose weight; you will need to check you don’t exceed this before using any tow ball mounted bike carrier.

Deciding which bike carriers to buy is not always easy, especially as you may not have had experience of using bike carriers before. We hope that our buying guides provide useful guidance about which bike carrier 'strategy' will be most appropriate for your circumstances, as well as highlighting the best features of particular models. We also have troubleshooting FAQs - for example, some customers struggle at first to fit four bikes onto a tow ball carrier, and wonder whether a different carrier would allow the bikes to be spaced wider apart. (It won't, but we have some good tips which make bike fitting much easier.)

Our bike carriers Exchange Scheme covers roof mounting and tow ball mounting bike carriers only. Rear door mounting / strap on carriers are not included, and nor are roof bars. It allows you to exchange within 90 days of invoice date. Most exchanges are for roof mounting upgrades, or are tow ball carriers with very basic tilting systems being exchanged for easy to use sliding / tilting carriers.

These are the rules of the bike carriers Exchange Scheme:

• You are allowed one exchange only.
• The original equipment must be in "as new" condition, subject only to fair wear and tear.
• The replacement items must be different models from the originals.
• The replacement items must not be part of a package deal or be from our Bargains section.
• Roof bars are never part of the Exchange Scheme.

This is how the exchange scheme works:

• We charge in full for the replacement items, including the appropriate carriage charge and a charge for any packaging needed for the return of the originals.
• We pay the return carriage costs.
• When the originals arrive back here we refund you for their invoice value, but you won't get back more than the invoice value of the replacements. In other words, if the replacements are cheaper than the originals we won't be giving you "extra cash back".

To find the spare parts you need, please click here or on the pdf symbol below, identify the product codes, then choose them from the list below. If you need more than 1 of any item, change the quantities in the Shopping Basket. Please not that older versions of the Strada sometimes require slightly different parts - it's best to check your instructions to be sure before ordering. We can still supply most older parts.

We try and keep spare parts in stock but if the part you order is not in stock we will get back to you ASAP to let you know how long it will take to order in.

Spare lights/light covers are available but there are a two different versions. It's important you order the correct version because they are not interchangeable, check the parts diagram (see the link above) to see the difference between the two types of lights.

Two different types of bike arms are available, the parts diagram above shows the current style arms (022 630 - 022 632). Older models of Strada will have different part codes for the bike arms (022 618 - 022 620). Check the instructions that came with your bike carrier to be sure you are ordering the correct part.
