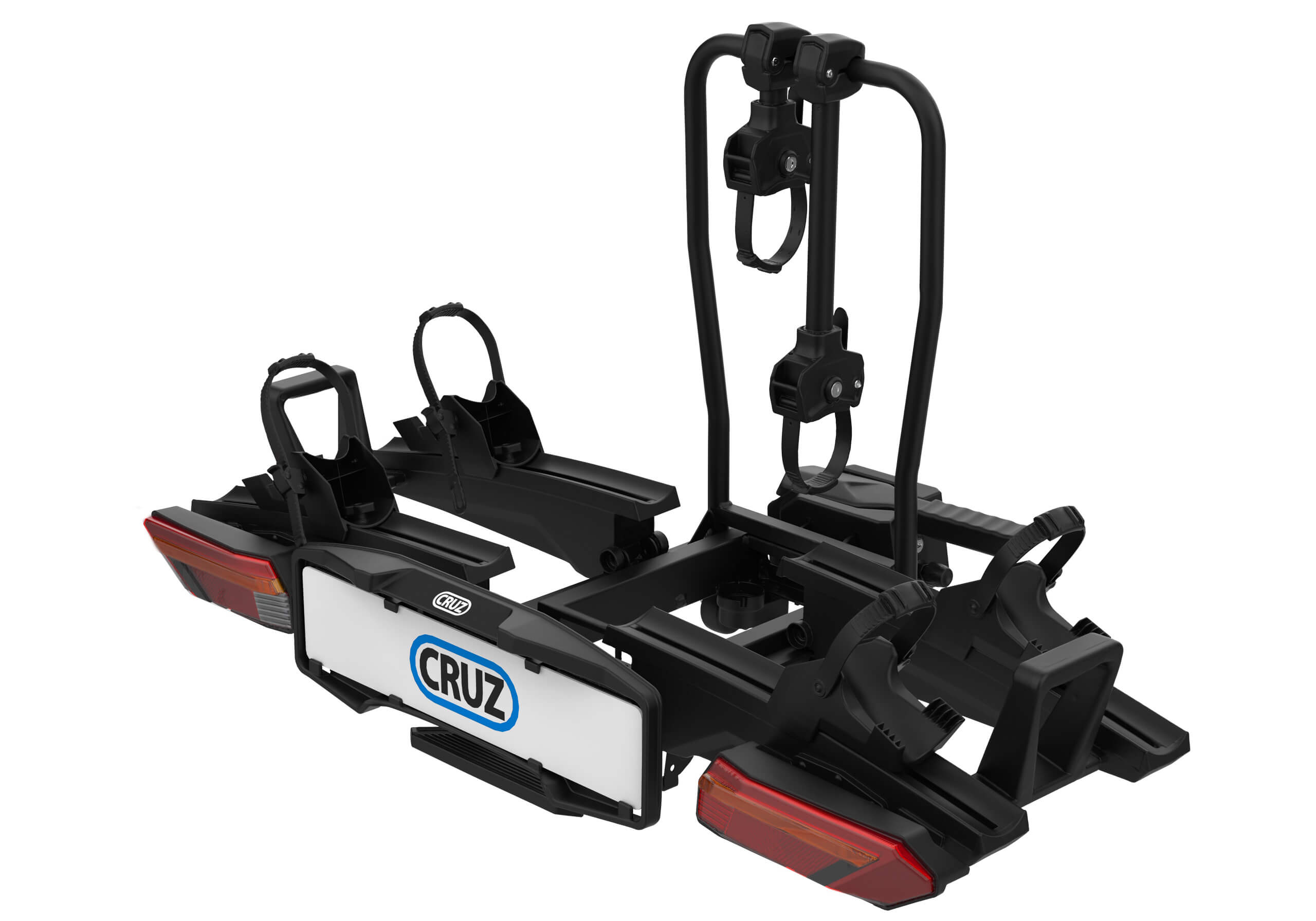

CRUZ Axler 2 bike tow bar carrier no. CR940572

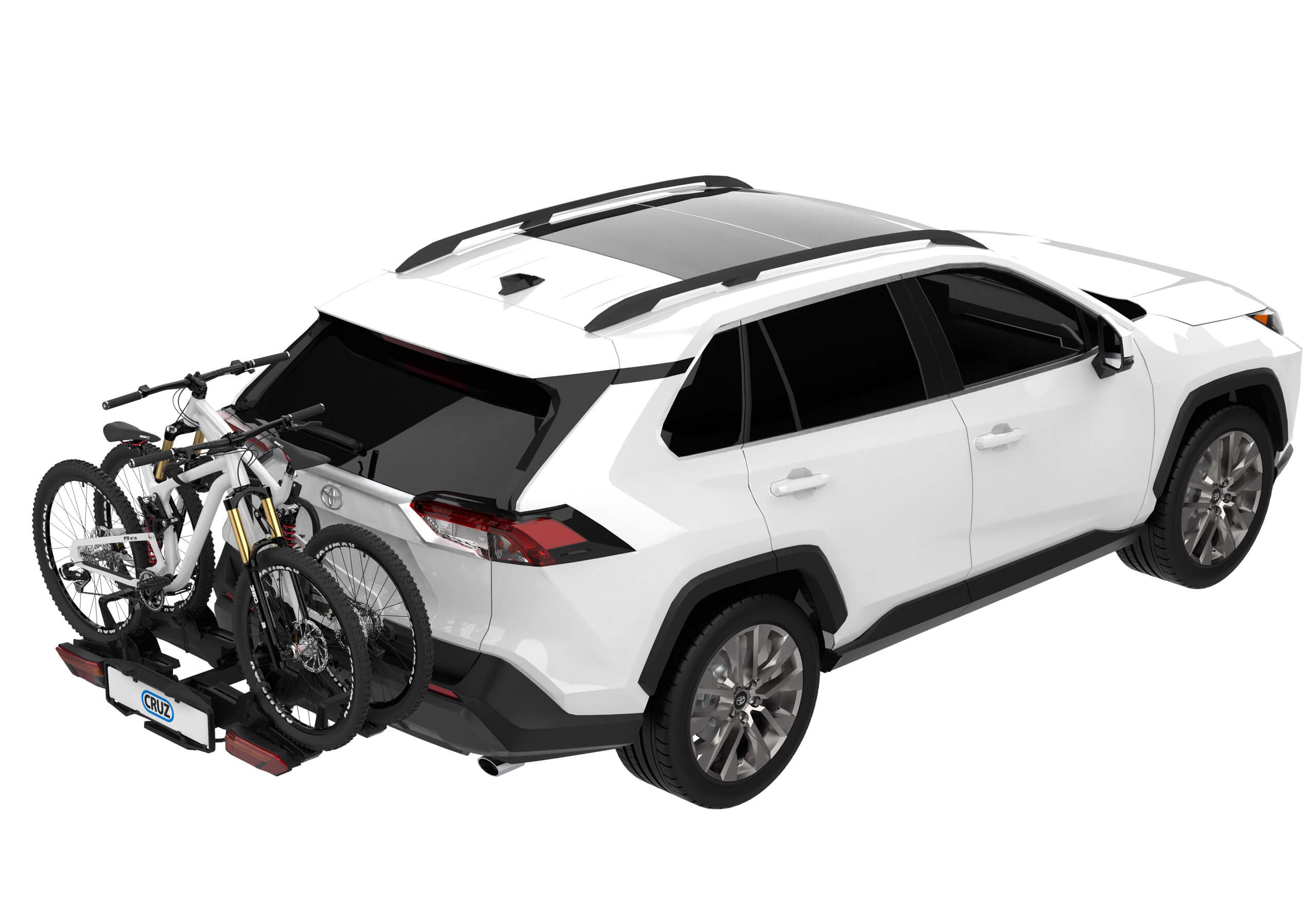

The CRUZ Axler 2-bike carrier is an easy to use bike carrier, blending robust construction with functional design, that will transport your bikes safely & securely.

Key features of the Axler 2

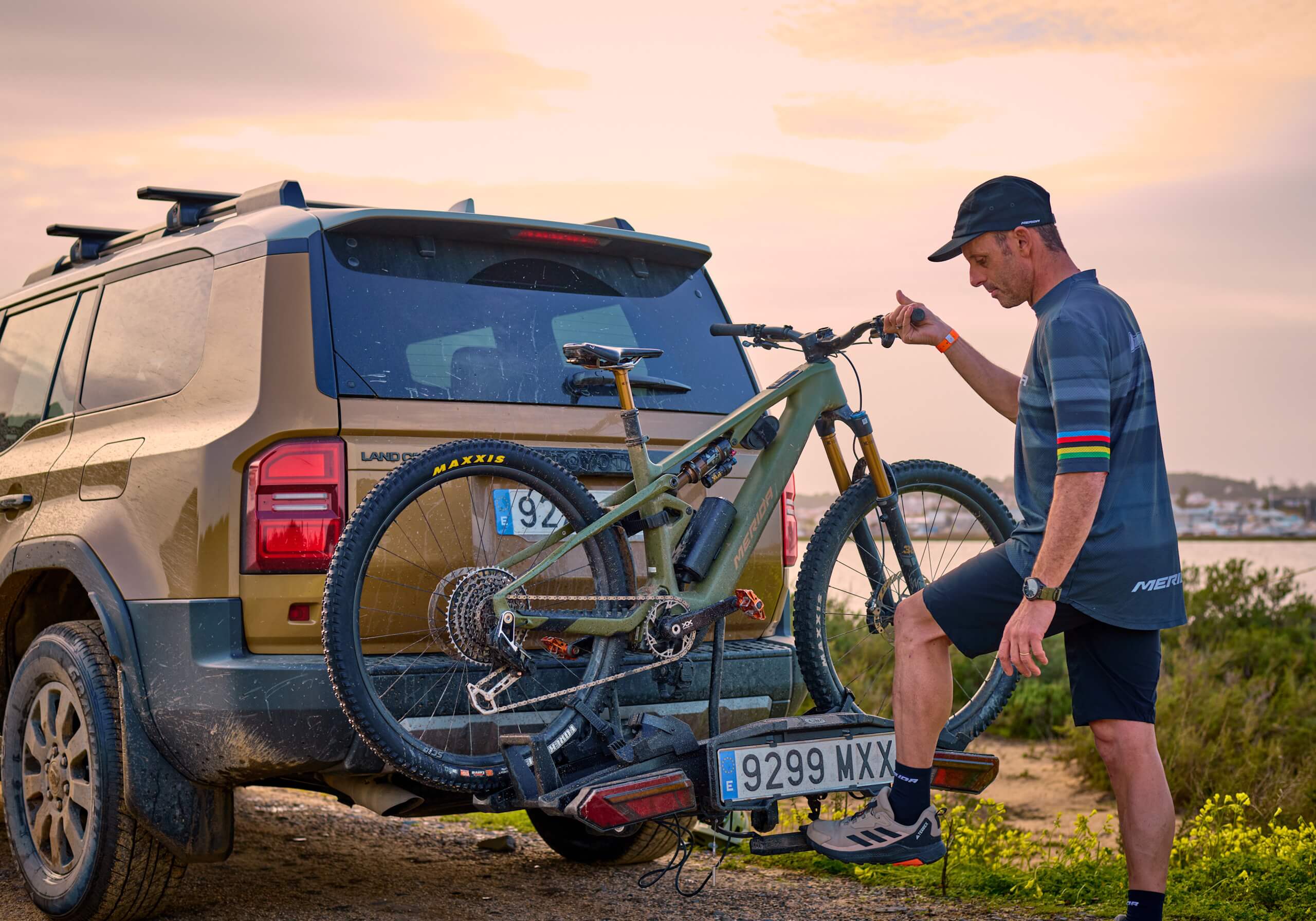

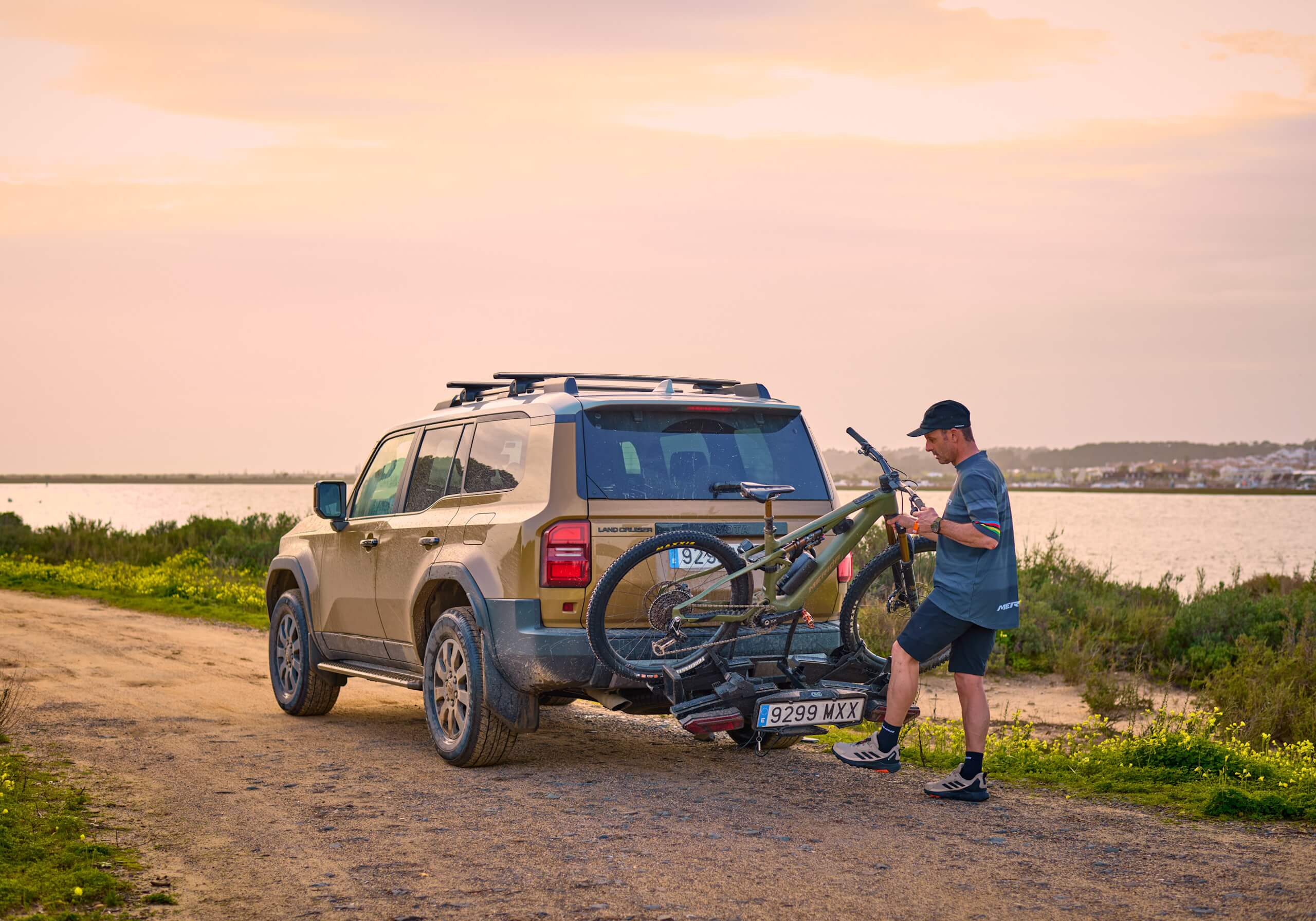

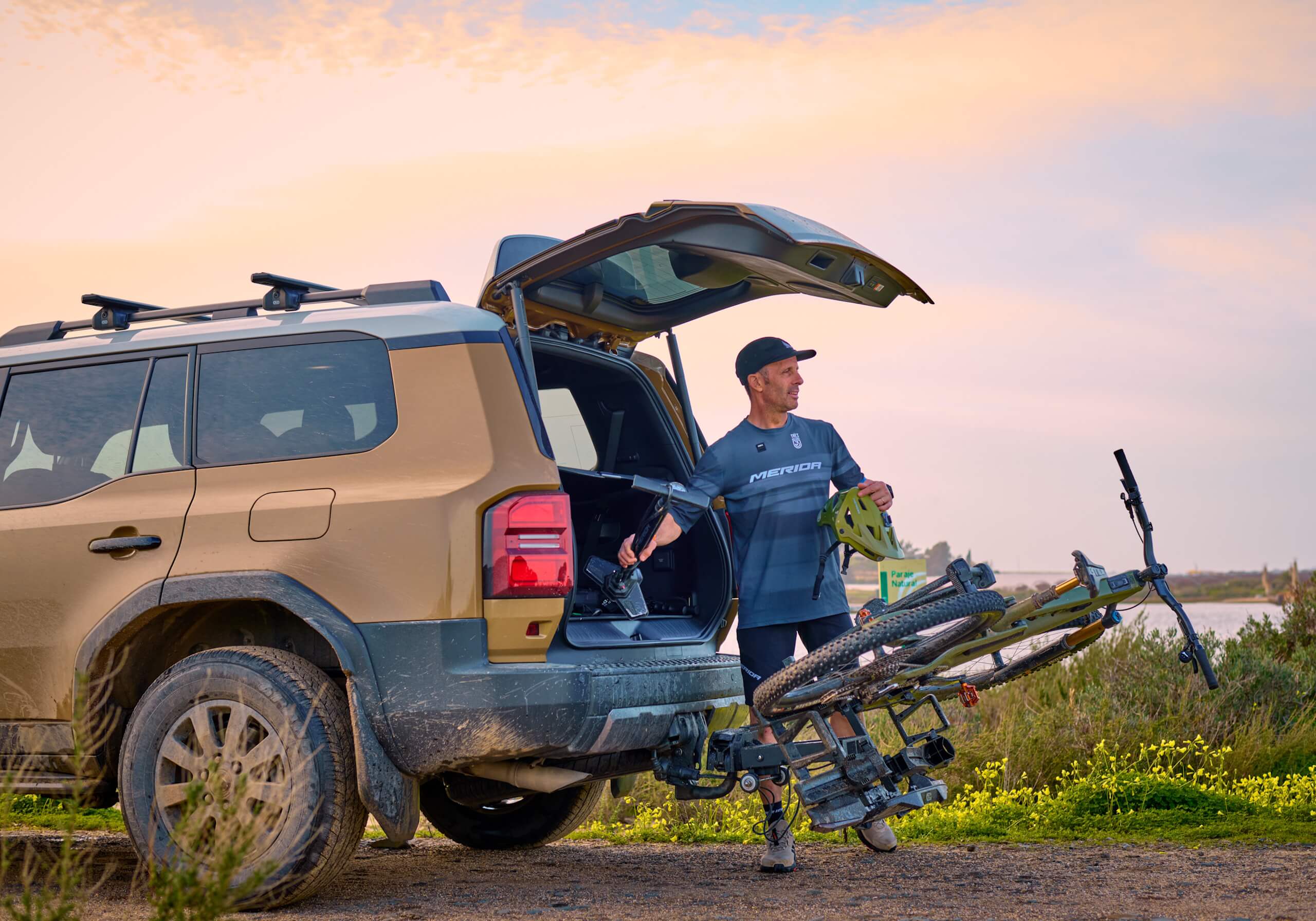

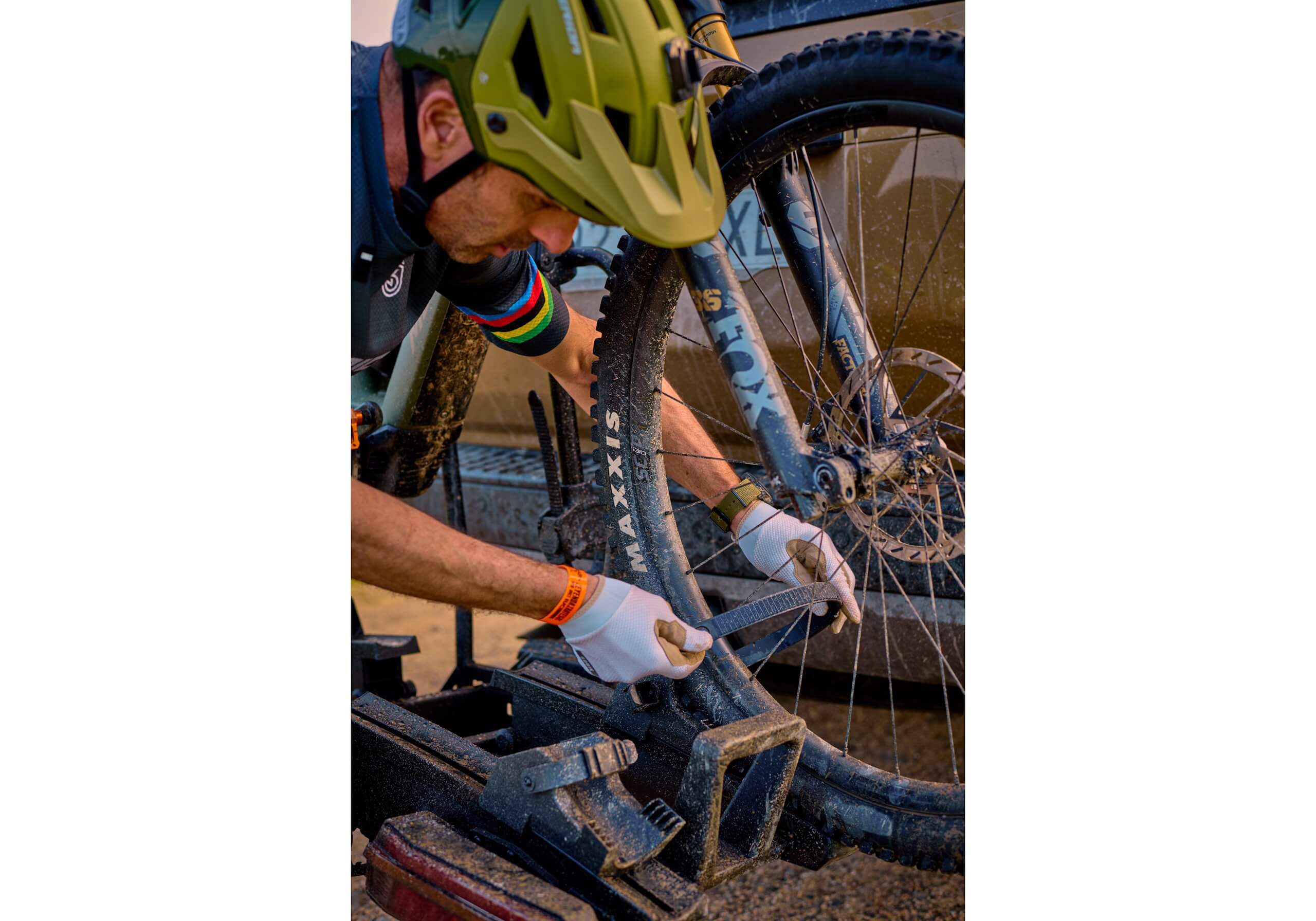

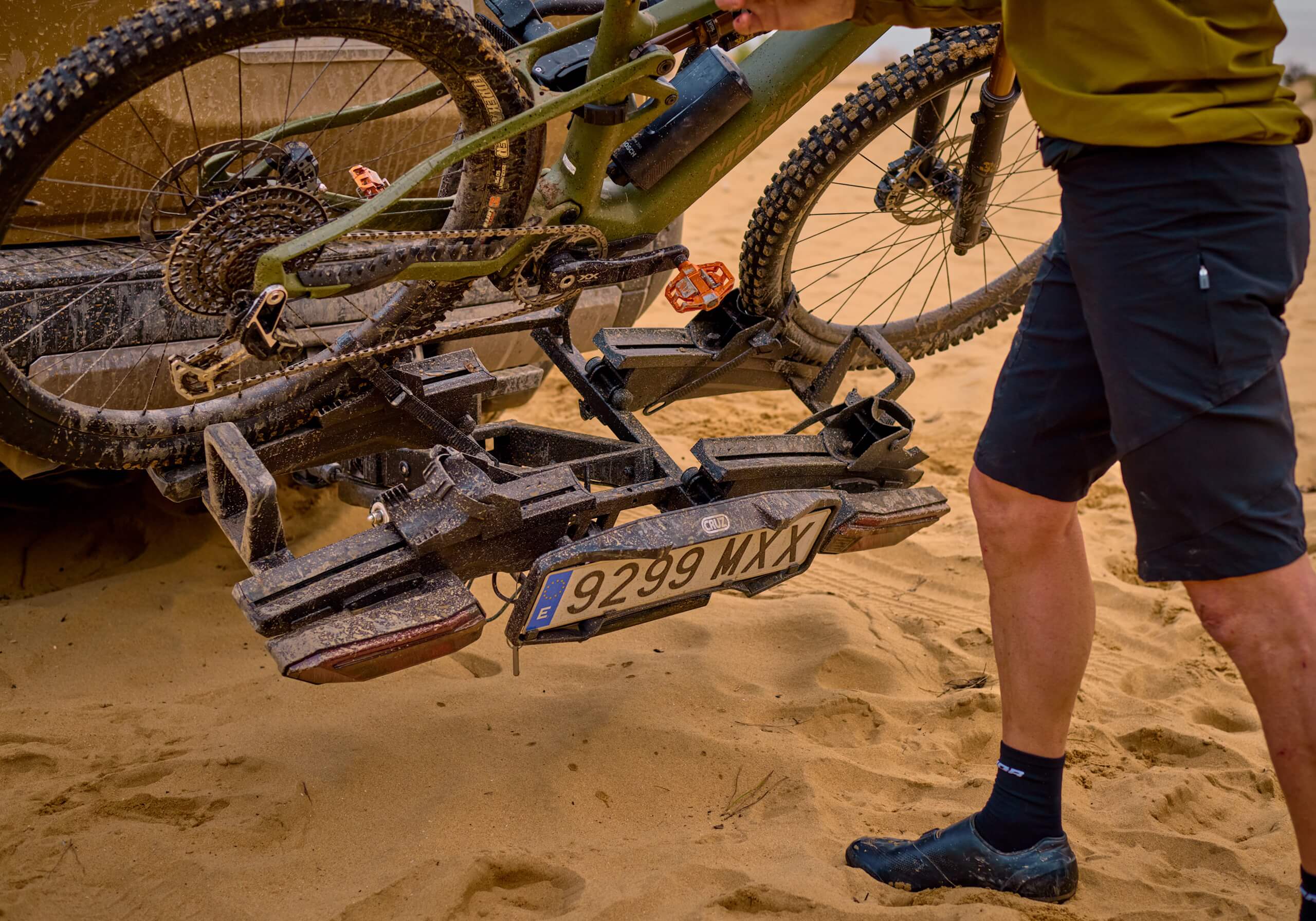

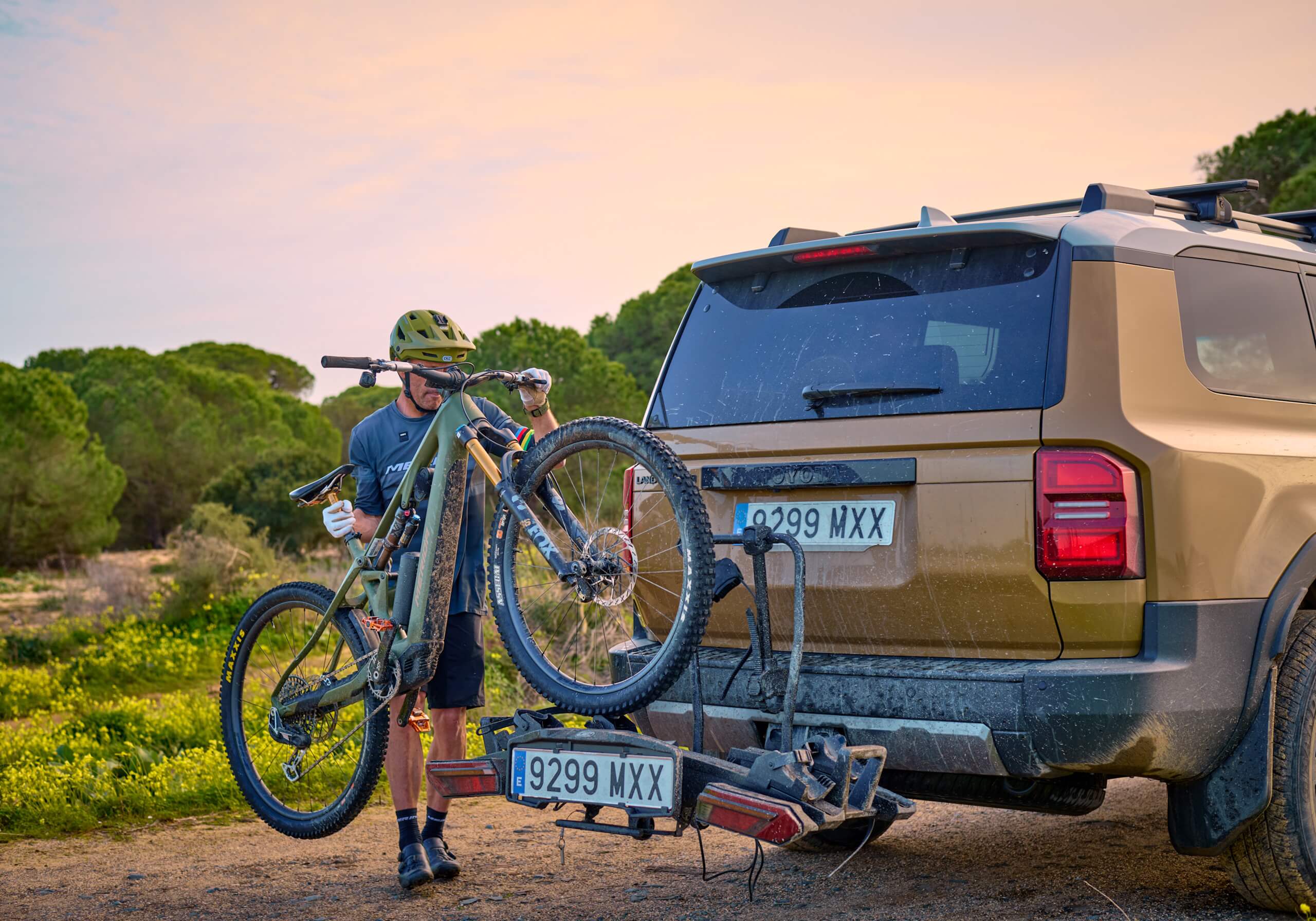

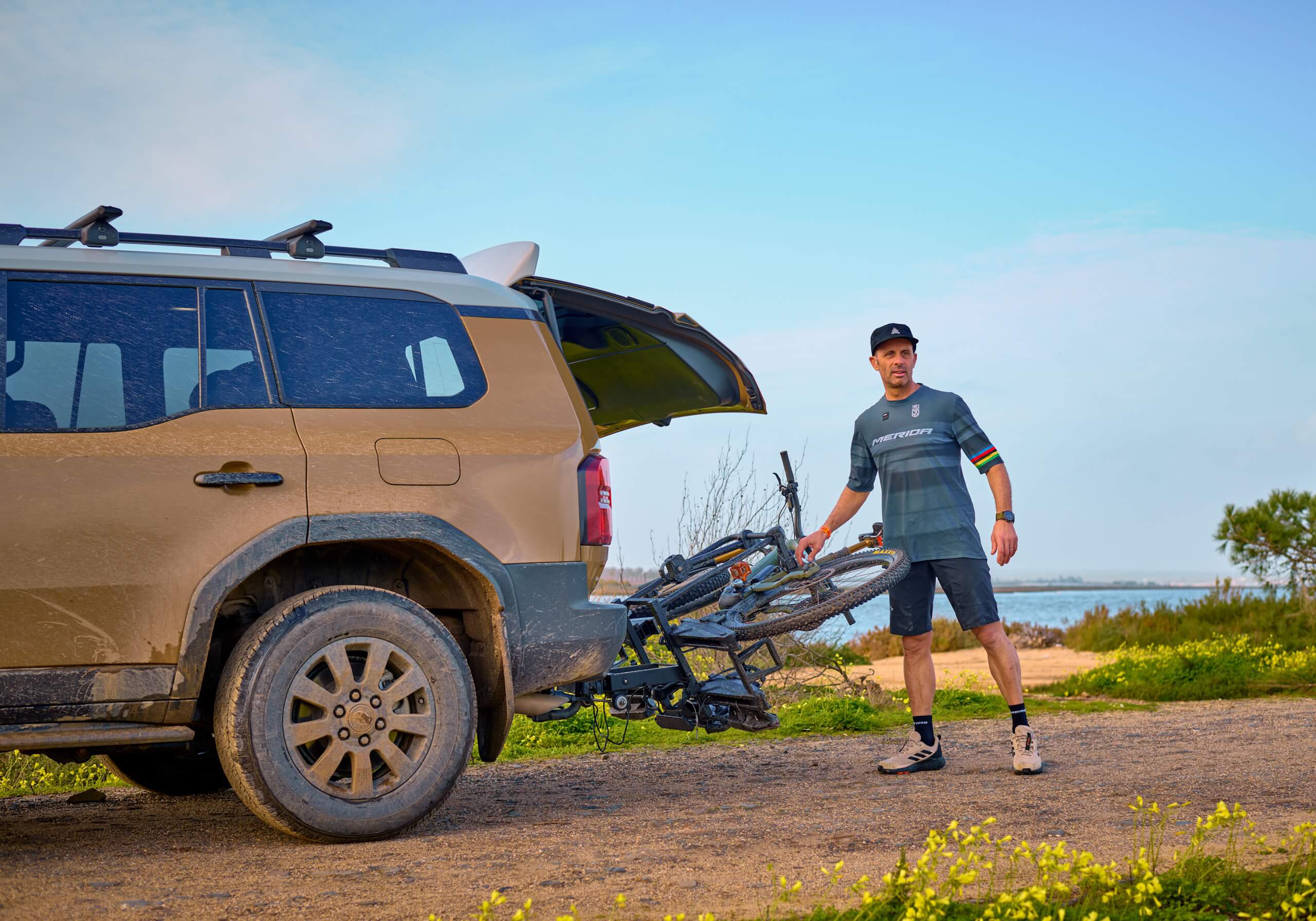

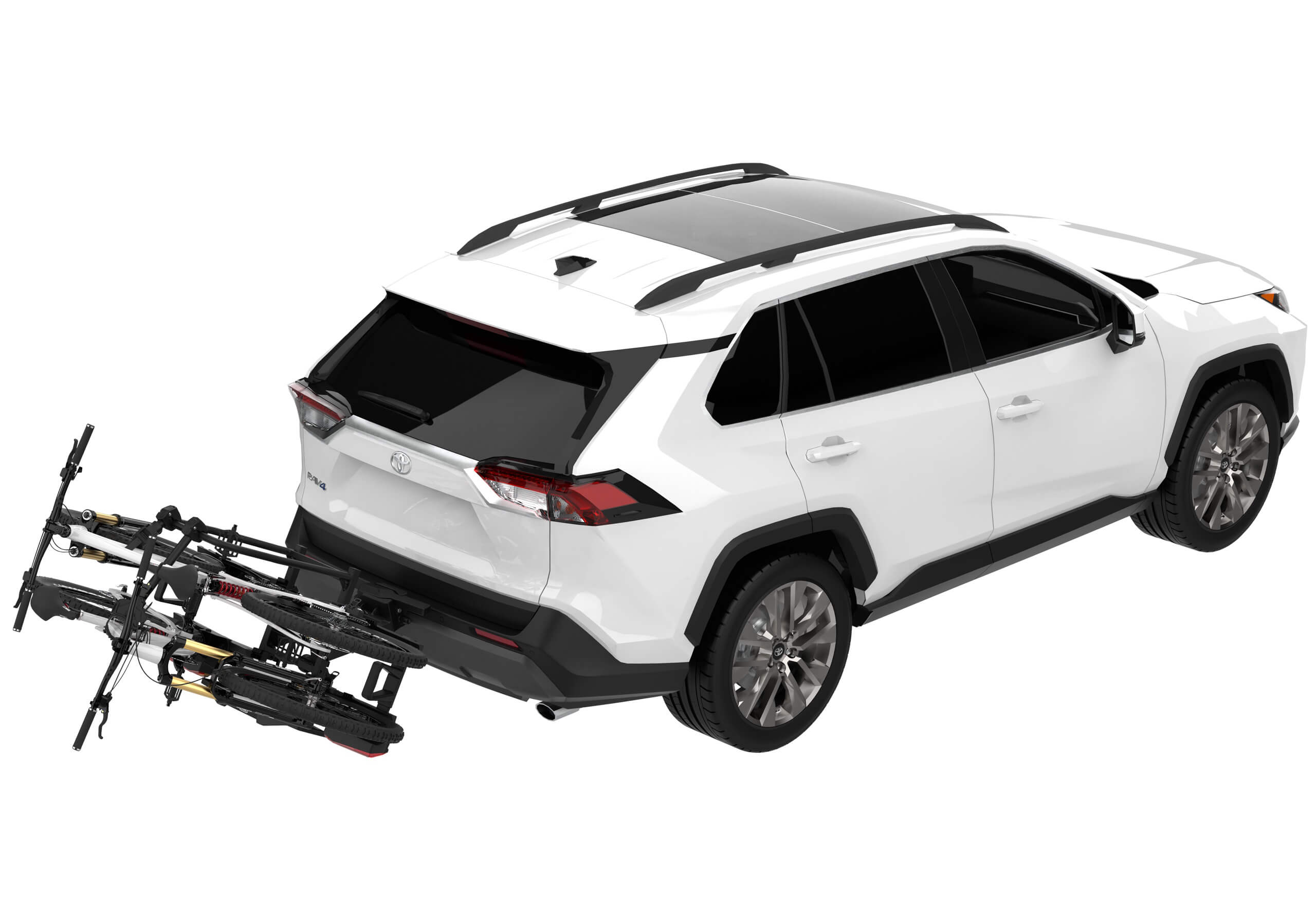

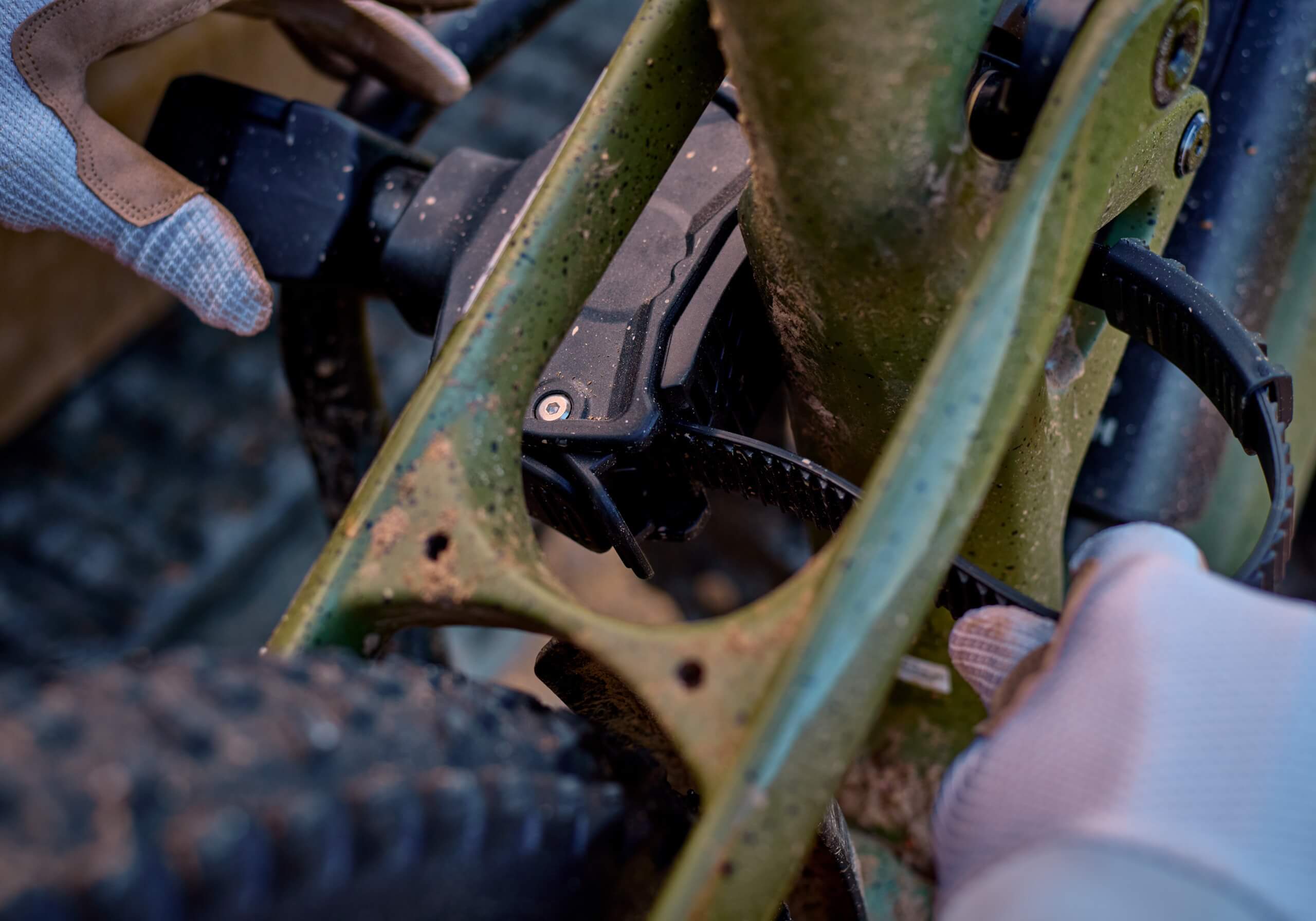

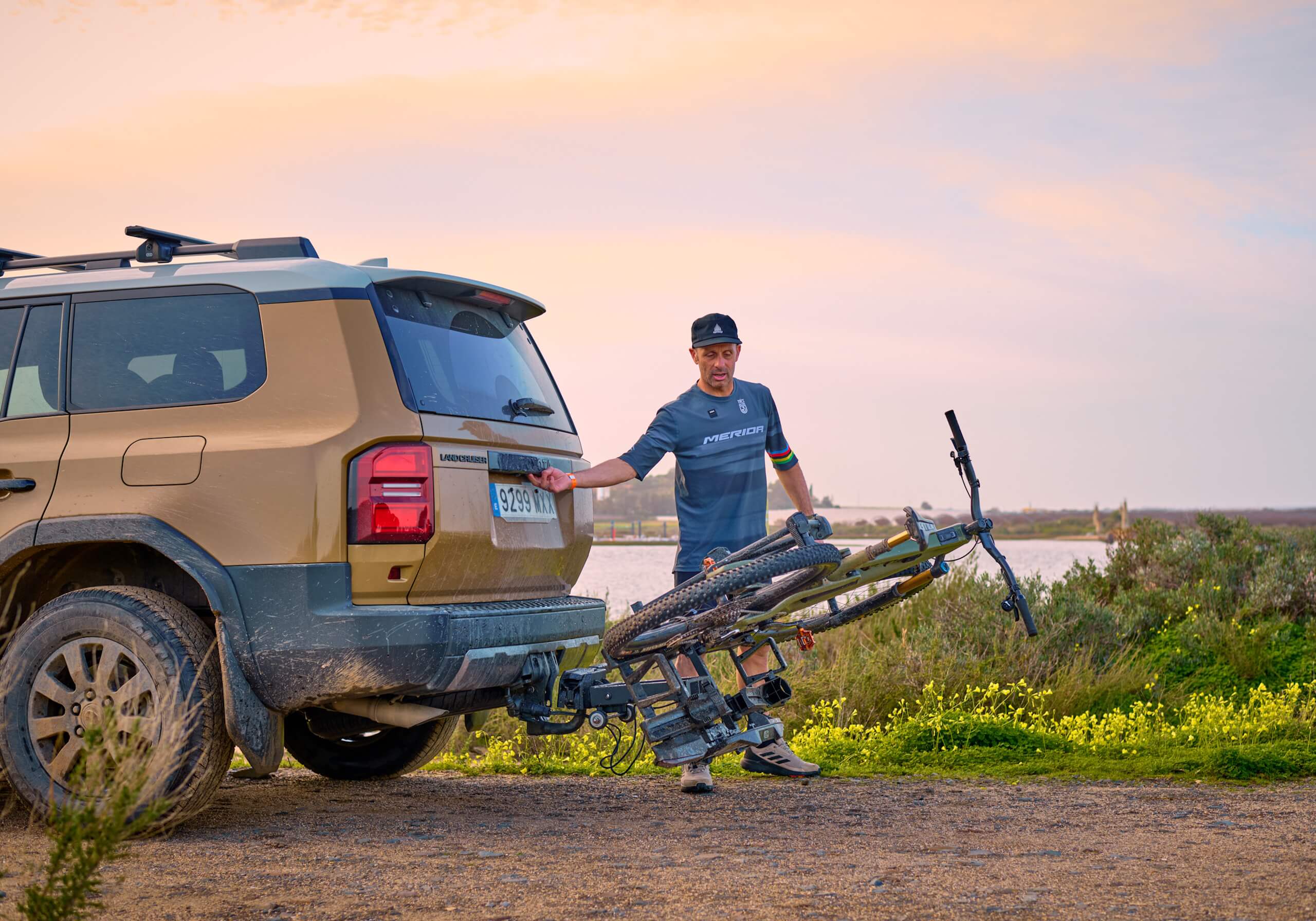

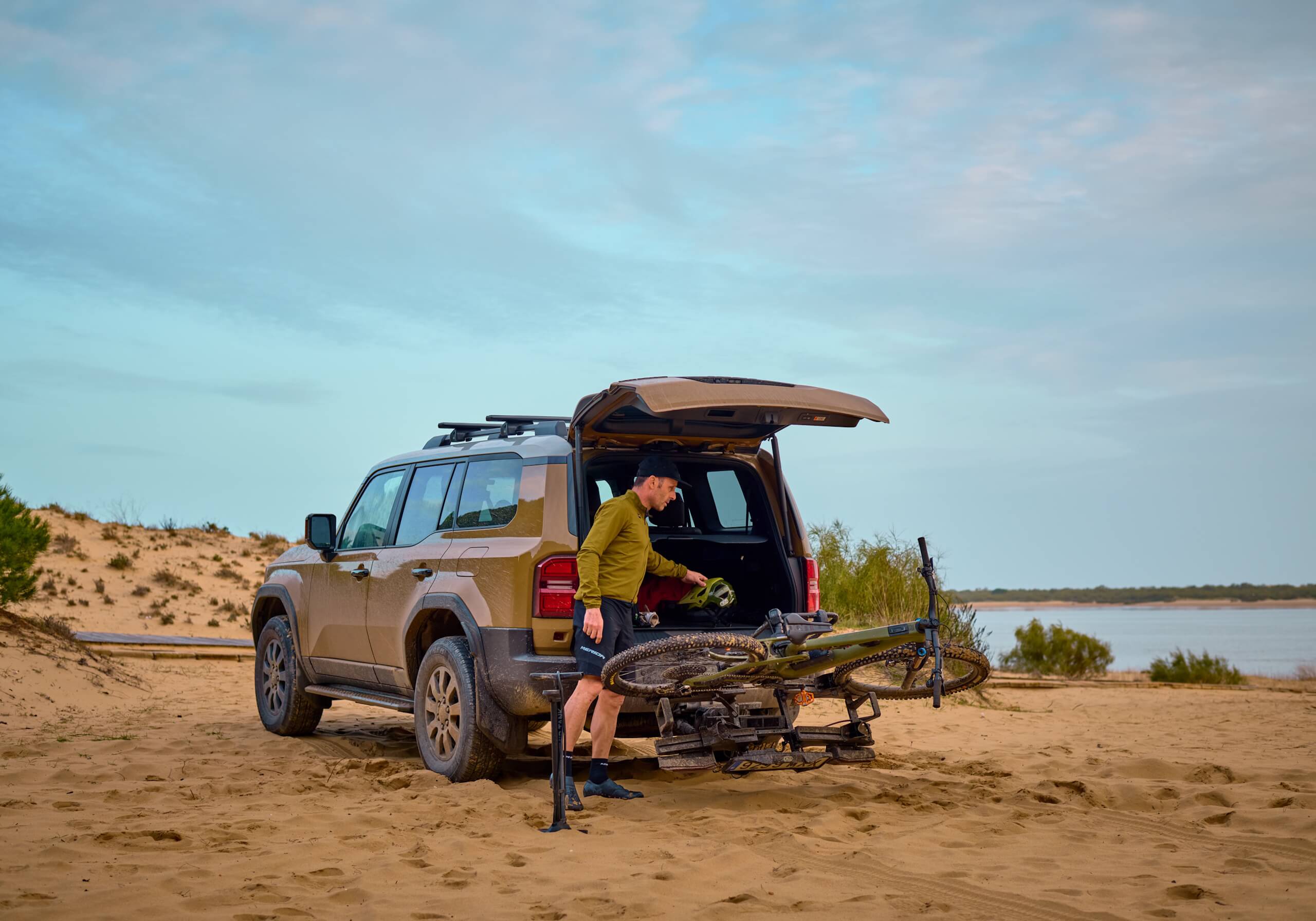

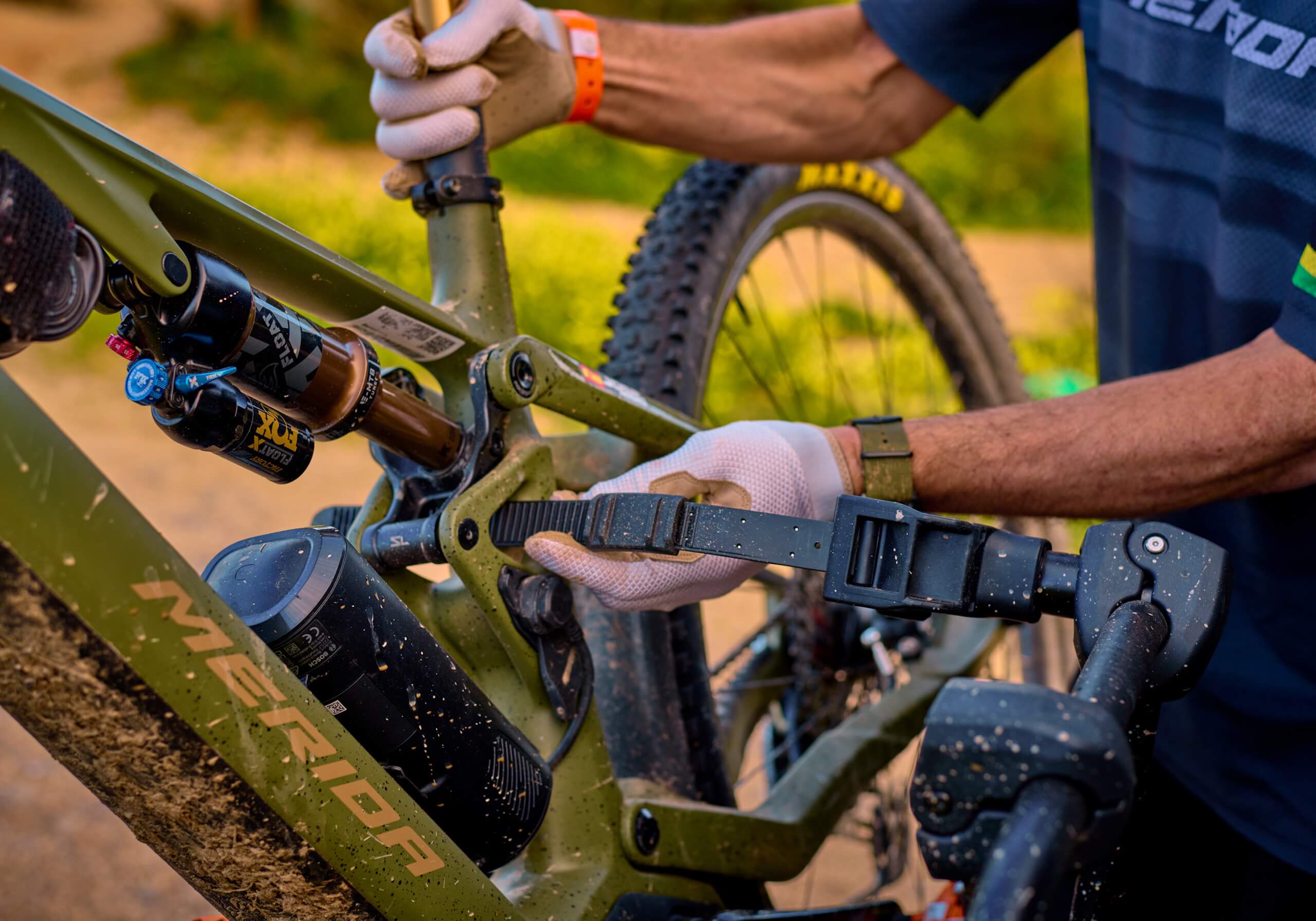

The Axler 2 is a fully foldable, tilting carrier that can be used to transport the majority of bikes on the market - including E-bikes. The bike carrier locks to the tow ball, and the lockable bike arms feature a reinforced steel strap for added security, as well as a torque limiter to prevent over-tightening. Protective padding on the arms and wheel holders ensures your bikes are supported securely, without the risk of damage to the frame or wheel rims. The Axler can be fully tilted using a foot pedal, even when bikes are loaded, giving access to the boot of the vehicle. (If you have a vehicle with a large vertical tailgate, you will not be able to open the boot with the Cruz Axler fitted, and should consider one of our bike carriers with a sliding action, such as the Atera Strada EVO RV). When your Cruz Axler is not in use, it is fully foldable and fitted with ergonomic integrated handles for simple transport & storage. The LED rear lights are supplied with a 13-pin electric connection - we include a 7-pin adapter free of charge to allow the carrier to be used on vehicles with a 7-pin electrical socket.

Specifications

• Suitable for the majority of bikes on the market - including E-bikes
• Maximum load: 60kg (Max 30kg per bike)
• Maximum wheelbase: 1400mm
• Fits bike frames up to 90mm
• Fits wheels from 20" - 29"
• Fits tyres up to 3.8"
• Weight: 20kg
• Includes locks to lock the bike carrier to the tow ball & lock the bikes to the carrier

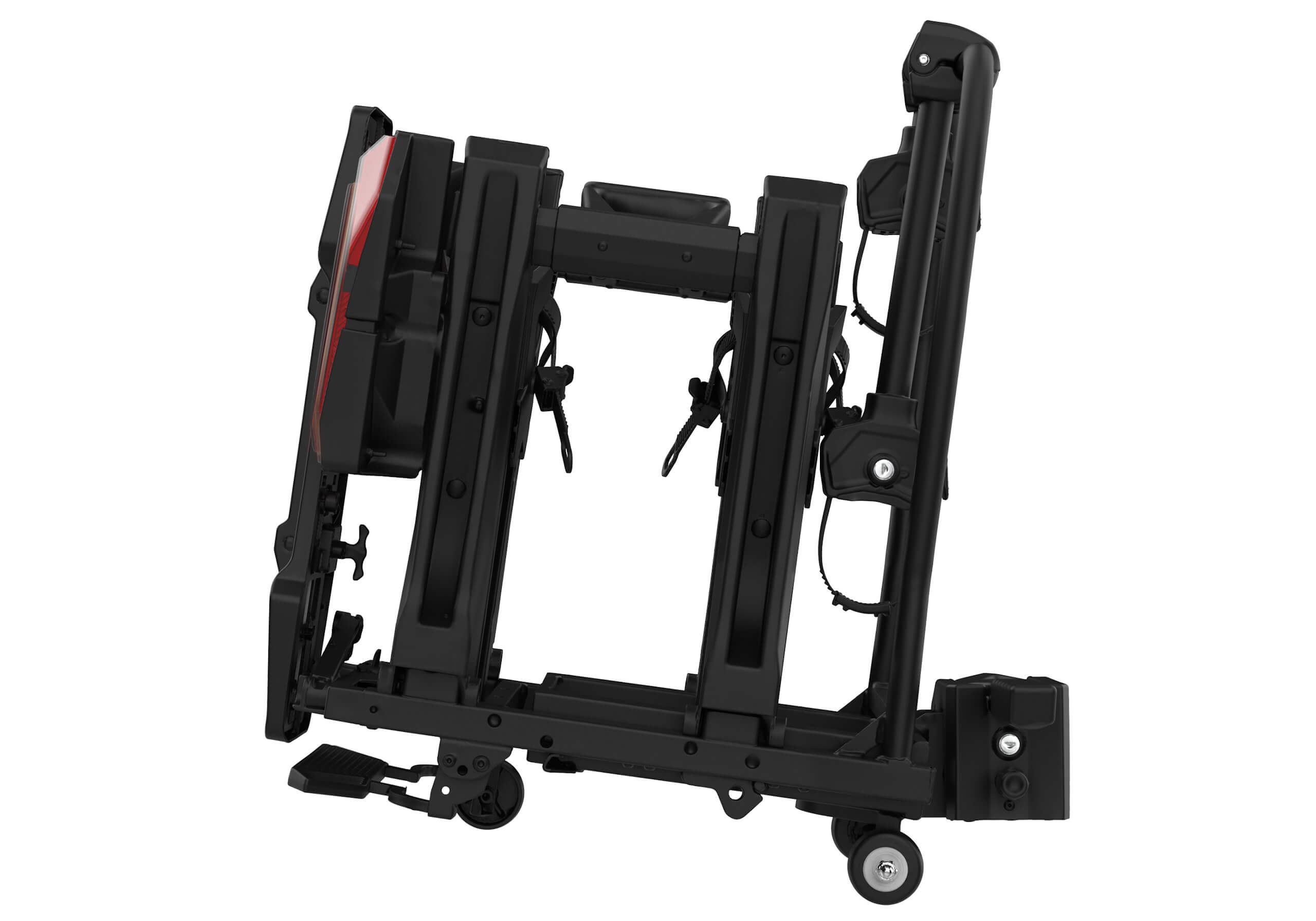

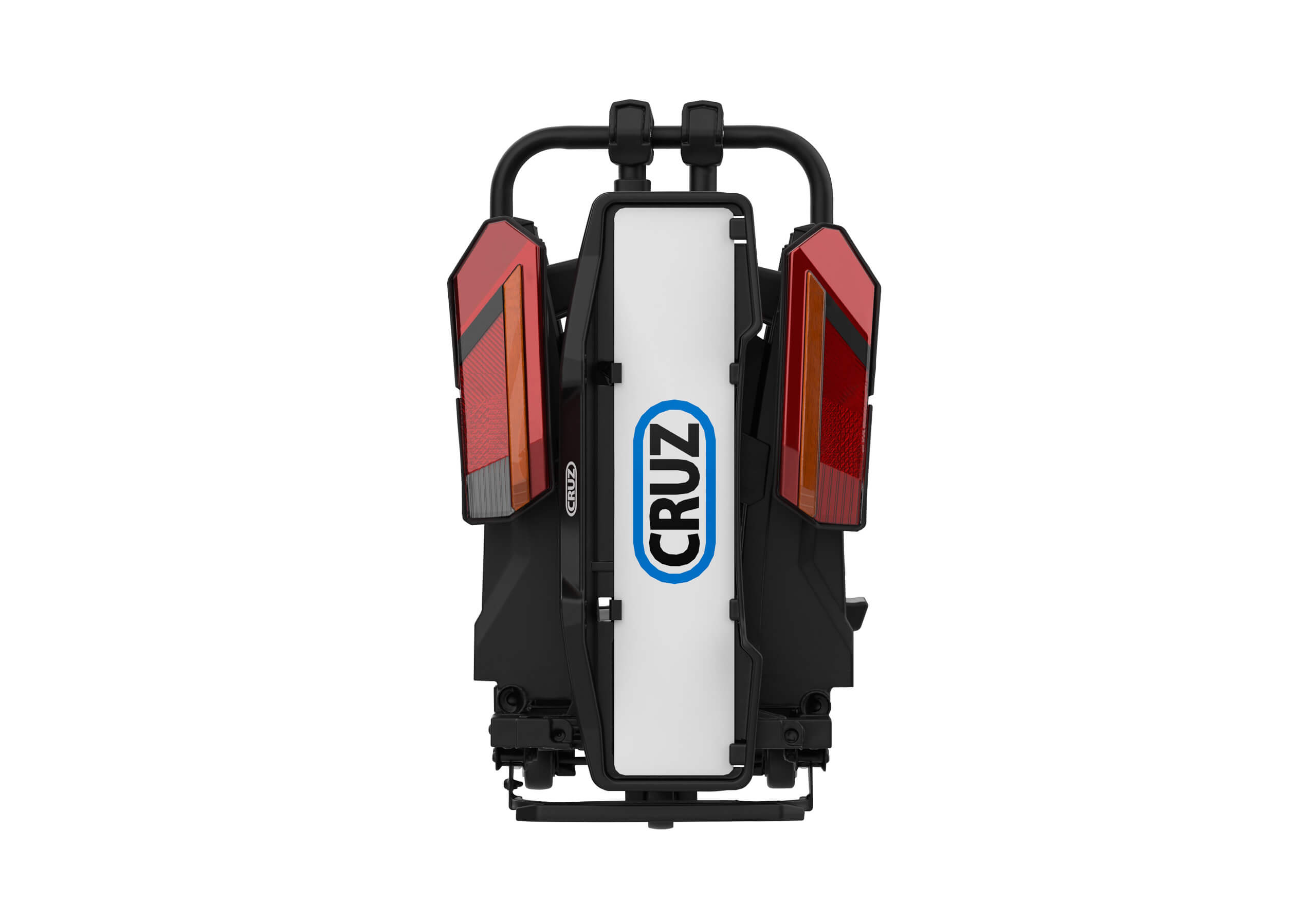

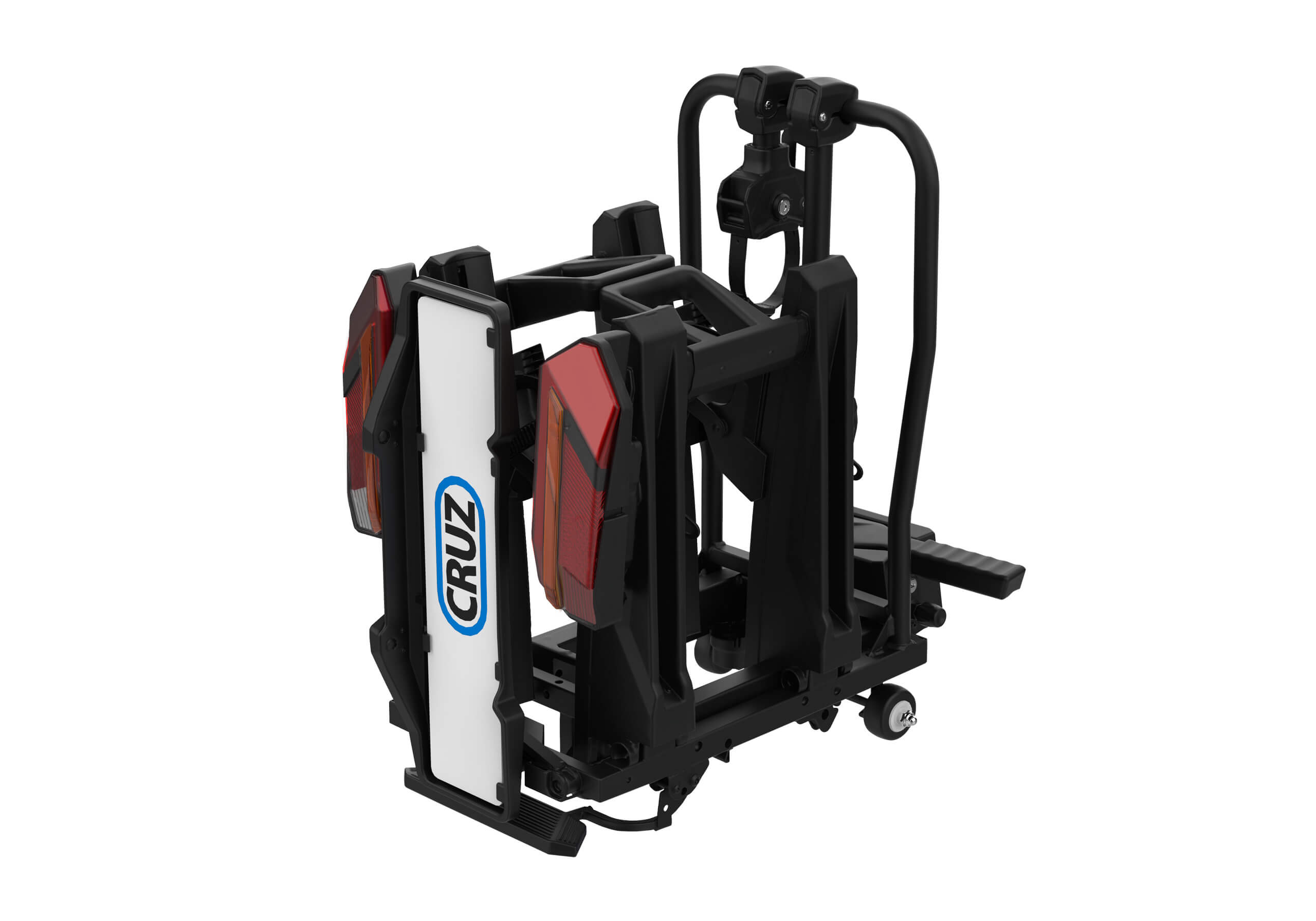

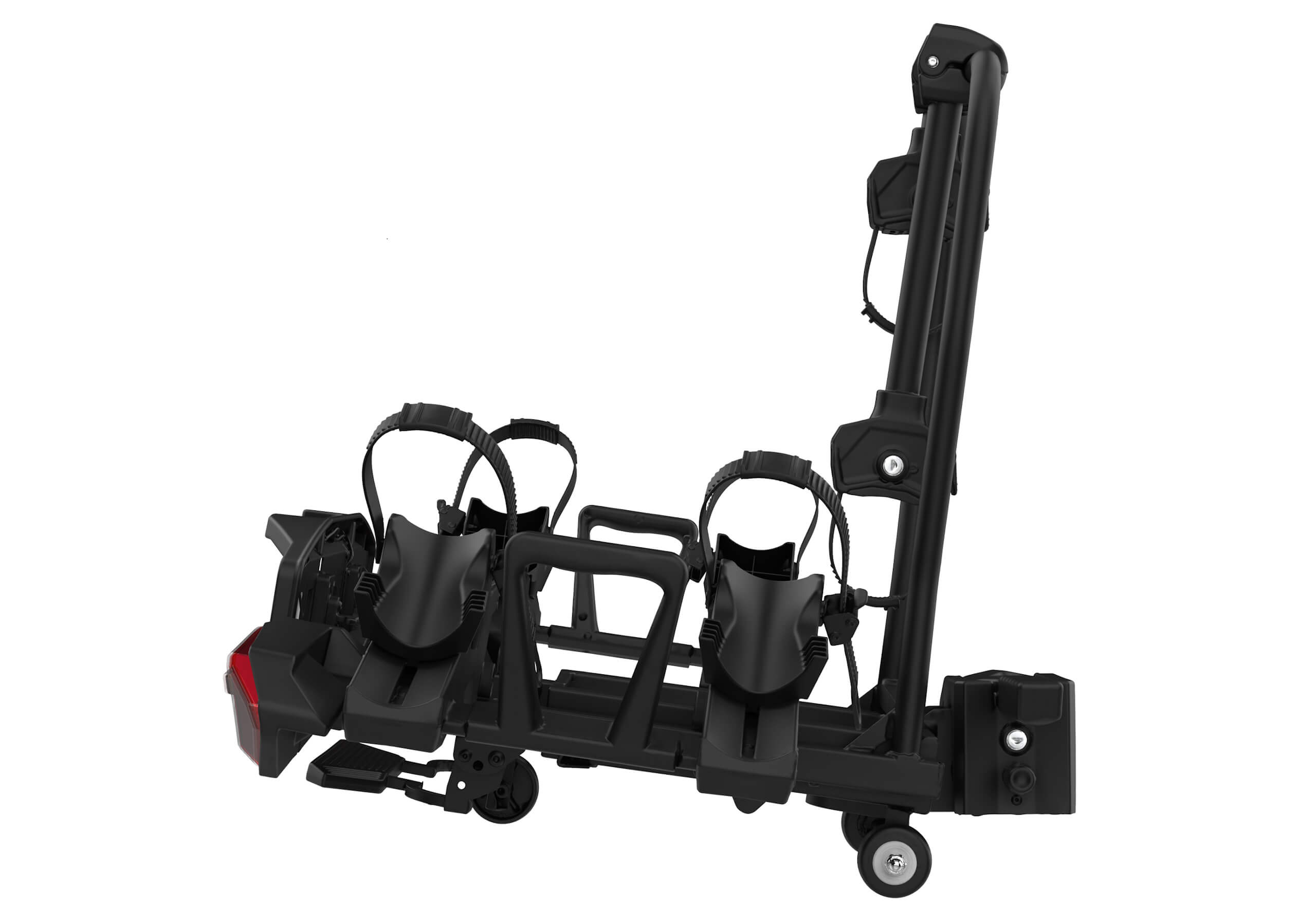

• Foldable for easy storage when not in use

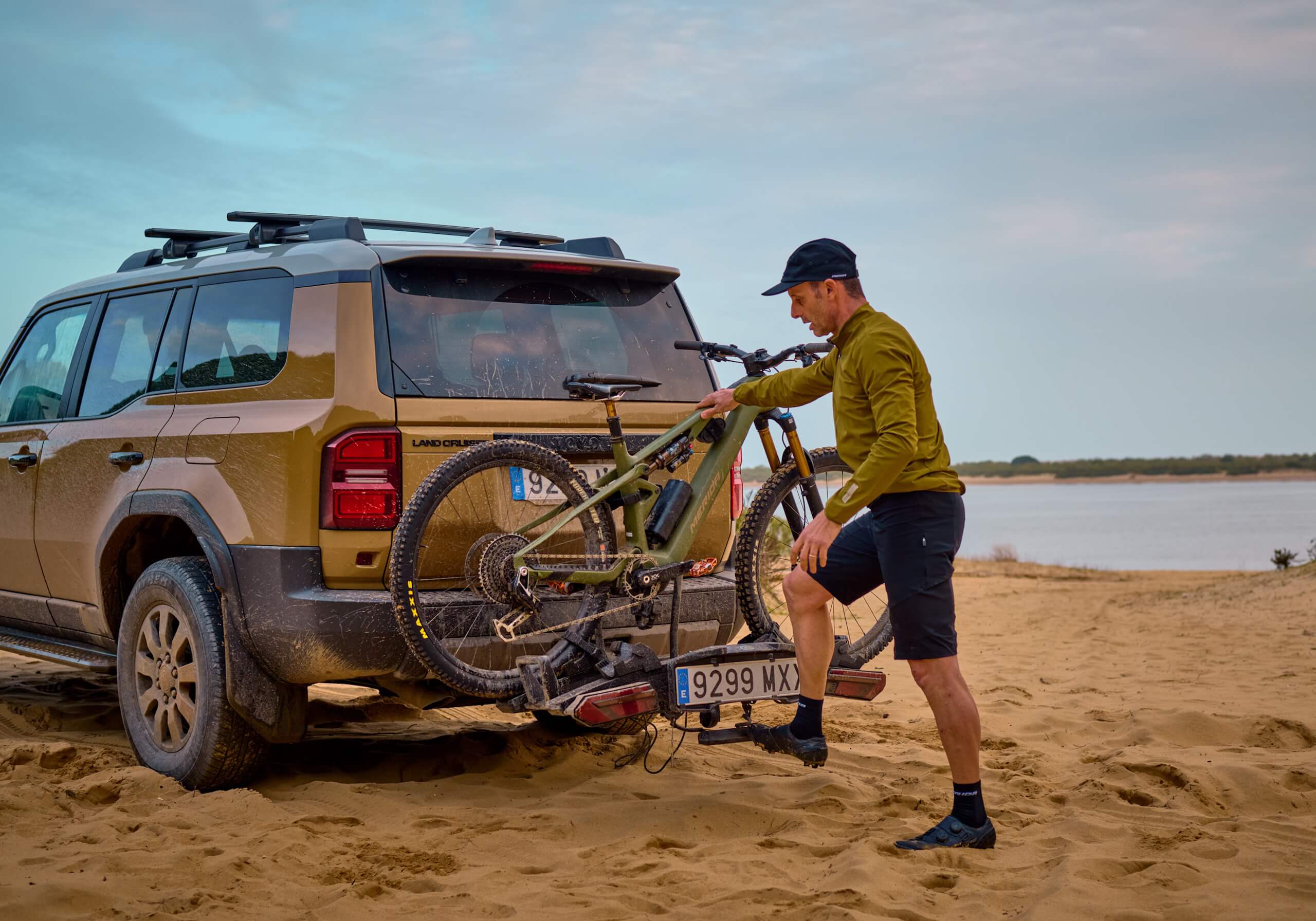

• Tilts using a foot pedal
• LED lights with 13-pin electrics (7-pin adapter included)
• Dimensions: 1215mm W x 710mm D x 750mm H (435mm W when folded)

Exchange scheme: Tow bar carriers are part of our 90 day exchange scheme - see the tab for details - so you can order without financial risk..

Deciding which bike carriers to buy is not always easy, especially as you may not have had experience of using bike carriers before. We hope that our buying guides provide useful guidance about which bike carrier 'strategy' will be most appropriate for your circumstances, as well as highlighting the best features of particular models. We also have troubleshooting FAQs - for example, some customers struggle at first to fit four bikes onto a tow ball carrier, and wonder whether a different carrier would allow the bikes to be spaced wider apart. (It won't, but we have some good tips which make bike fitting much easier.)

Our bike carriers Exchange Scheme covers roof mounting and tow ball mounting bike carriers only. Rear door mounting / strap on carriers are not included, and nor are roof bars. It allows you to exchange within 90 days of invoice date. Most exchanges are for roof mounting upgrades, or are tow ball carriers with very basic tilting systems being exchanged for easy to use sliding / tilting carriers.

These are the rules of the bike carriers Exchange Scheme:

• You are allowed one exchange only.
• The original equipment must be in "as new" condition, subject only to fair wear and tear.
• The replacement items must be different models from the originals.
• The replacement items must not be part of a package deal or be from our Bargains section.
• Roof bars are never part of the Exchange Scheme.

This is how the exchange scheme works:

• We charge in full for the replacement items, including the appropriate carriage charge and a charge for any packaging needed for the return of the originals.
• We pay the return carriage costs.
• When the originals arrive back here we refund you for their invoice value but you won't get back more than the invoice value of the replacements. In other words, if the replacements are cheaper than the originals we won't be giving you "extra cash back".

Please note that we can only collect exchange scheme items from mainland UK.

Delivery charges and arrangements:

We charge a contribution towards delivery costs, depending on what you order, where you live, and how quickly you want the goods.

These are our standard charges; there are usually surcharges for all offshore destinations and some remote postcodes - for details please see our delivery information page.

Delivery of other items

Delivery times

Delivery times are calculated in working days (Monday to Friday, excluding Bank holidays).

Cut-off times for Express Delivery orders
Express Delivery orders placed before before the cut-off times shown below will usually be desptached on the date of order. Express Delivery orders placed after these cut-off times will be despatched the next working day.

Delivery FAQs

When will my order arrive?
There are no deliveries on Saturdays, Sundays or Bank Holidays, except for postable items where Royal Mail has a Saturday delivery. Express Delivery orders placed on a Friday (before 1pm) should be delivered on the Monday or Tuesday, Express Delivery orders placed on a Saturday or Sunday should be delivered on the Tuesday or Wednesday. The arrangements for Very Heavy Items are different and are shown above.

What about Next Working Day delivery?
Most Express delivery orders will arrive on the next working day, if the order is placed before the cut-off time (see above). Some will arrive on the second working day if there has been a "split-delivery". So-called “split deliveries” happen when the couriers do not have enough trailer space for everything that should be moved around the UK, so they will load what they can and leave the rest for the next trailer.

Is my delivery day guaranteed?
No retailer or courier company can ever "guarantee" a Next Working Day delivery. As well as split deliveries, all courier companies occasionally have the same transport problems as can happen to everyone else, including snow blocked roads, closed roads, traffic jams, mechanical breakdown, an inability to find the delivery address, or to gain access to it if, for example, it's in a block of flats. We work with some of the best couriers in the business, and overall they provide an outstanding service.

Do I need to be at home?
We are very flexible with our deliveries and will aim to deliver to an address which suits you – this does not need to be your home address. Goods can usually be left without signature - we prefer this with roof boxes. There's a "Special Delivery Instructions" box in the checkout area where we'll ask you to choose a typical instruction and then amend it to suit your particular requirements.

Payment options:

We take the following cards, and also PayPal. Please note that the entry on your card statement will be from "The Roof Box Company".

Secure payments

Our website is secured by Sectigo (formerly Comodo CA), the largest commercial Certificate Authority in the world.

Bike carriers with 7 pin plugs

Wheel support bike carriers which are supplied with 7 pin plugs usually only include rear lights, brake lights and indicator lights, which is why they are often called ‘3 function lights’.

Unusually, Thule bike carriers with 7 pin plugs also include a fog light; this works when plugged into 7 pin electrics, but it does not work when plugged into 13 pin electrics via an adapter.

Bike carriers with 13 pin plugs

Bike carriers which are supplied with 13 pin plugs include a fog light and reversing light, as well as rear lights, brake lights and indicator lights – which is why they are often called ‘5 function lights’.

If these are plugged into 13 pin electrics then all 5 functions will work.

If they are plugged into 7 pin electrics via an adapter then the fog light should work, but the reversing light on the bike carrier will not work.

Please note

These notes assume that your tow bar electrics have been wired correctly!

Tow bar wiring in the digital age is much more complicated than it used to be when everything was analogue. Our experience is that if you are having lighting problems, e.g. a fog light does not work in 7 pin tow bar electrics, the problem is much more likely to be caused by the wiring, not by a dud bulb in the bike carrier.
