INNO Multi Fork Lock bike carrier, no. INA392

INNO's Multi Fork Lock rack is another beautifully designed and easy to use bike carrier from Japan’s market leader. It fits a massive range of bikes. The adjustable 'multi-cradle' rear wheel holder works with mountain bike tyres as well as road bikes, even with deep dish wheels. It's even compatible with disc brakes.

It's quick and easy to install - no tools are required. It fits all the roof bars we sell.

Other features:

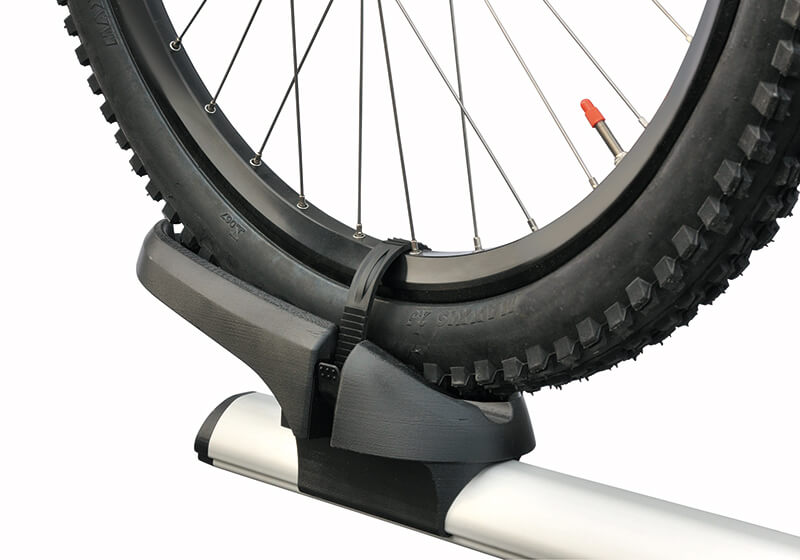

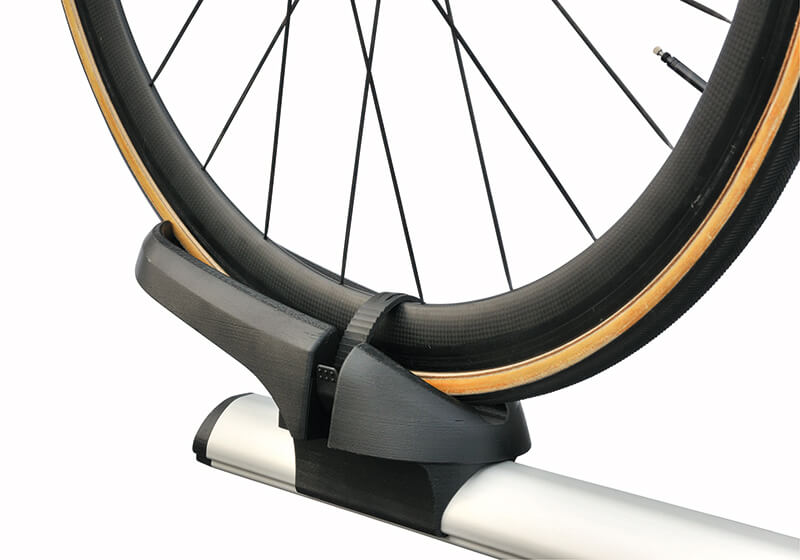

• The adjustable rear wheel holder takes a range of bike lengths and wheel sizes, including MTB tyres and skinny road bike tyres with deep section wheels
• Fits standard 9mm forks as well as 9mm, 15 x 100mm and 20 x 110 mm thru axles without any extra adapters
• Accommodates disc brakes
• One lock secures your bike to the rack and the rack to your roof bars
• Stylish design, made from strong, lightweight aluminium

This carrier fits around bars up to 90mm wide by 15-45mm deep, so it will fit all our roof bars.

Exchange scheme: Roof mounting bike carriers are part of our 90 day exchange scheme. The bottom line is that if you aren't satisfied that the "INNO Multi Fork " fits the bill you can exchange it for an alternative roof mount, or a tow bar bike rack.

Technical specifications at a glance:

Fits roof bars up to: 90mm wide by 15-45mm deep (fits all the bars we sell)

Fits aerobars: most, fits around bars up to 90mm wide by 45mm deep

Fits tyres up to: 2.7"

Fits wheel sizes: 20 - 29"

Maximum wheelbase: 120cm (can vary depending on size of bike wheel)

Weight: 2.4kg

Max load capacity: 23kg

Bar to carrier lock: yes

Carrier to bike lock: yes

Matching locks available: no

Width: takes 270mm of roof bar space

Fits roof bars spaced between: 60-110cm apart

Guarantee: 2 years

Useful information:

Requires 20mm clearance between the base of the roof bar and the car roof
