BUZZ RACK Spark 2 bike carrier no. BRP132 - now discontinued

0
RRP: 330.00
discontinued

This bike carrier has now been discontinued. We have left this page so that customers who wish to buy spare parts can do so - see the Spares tab - and for comment and specifications to help with secondhand sales.

View Alternative Bike Carriers view replacement product


BUZZ RACK make great bike racks that are strong, secure and innovative. These are products you can confidently rely on for your adventures.

So what's the big deal with the BUZZ RACK Spark? Fundamentally it's down to design, safety, quality, and ease of use. Consider the following:

  • It's supplied almost fully assembled; minimum work is required.
  • It's the right shape for storing in the boot when not in use.
  • It fits to all tow balls with an easy "first time out only" adjustment system.
  • Fitting is simple and, above all, fast; place the carrier on the tow ball and lift the lever, the ergonomically easy thing to do, with nothing to tighten or turn.
  • The BUZZ RACK Spark is genuinely easy to tilt, well balanced during the tilting phase. The tilt function is accessed at the front of the carrier so it's easy to get to, unlike many other bike carriers.
  • It sits high on the tow ball, well clear of speed bumps and other hazards such as steep ferry ramps.
  • The wheel holders, much more robust than we've seen elsewhere, will slide in and out and will accommodate all wheelbases, even very small children's bikes if you turn the wheel holders through 180º.
  • The wheel straps are tough, easily adjusted and fit tyres up to 2.8 inches. A longer strap is available separately if you have semi-fat tyres - see below. A fat tyres adapter is also available for wheels up to 4.6".

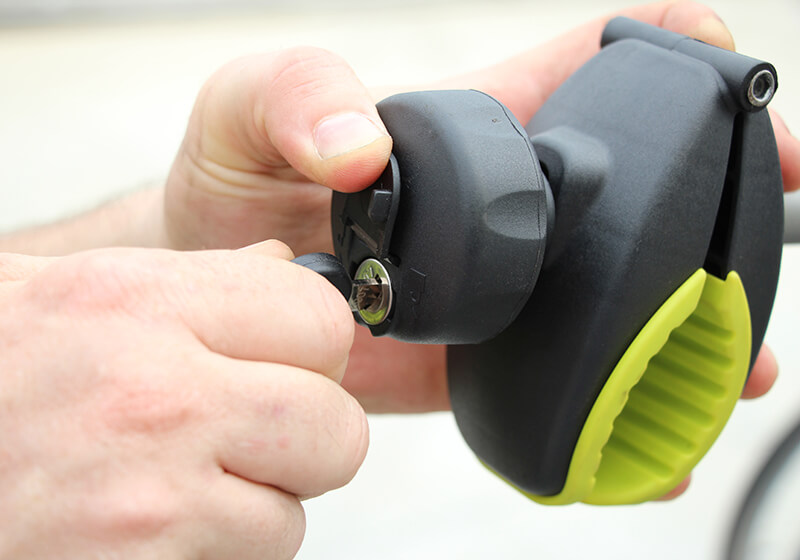

  • Both bike holders have locks, and the carrier also locks to the tow ball with a robust lock.
  • Flick up a couple of cam levers and the carrier folds flat for easier storage.
  • All parts are replaceable if e.g. someone forgets that a tow bar carrier is fitted and reverses into a wall - which happens!
  • Dimensions: 96cm wide by 61cm deep (measured from the centre of the tow ball mount to the outside edge of the number plate holder).
  • Weight: 17.5kg.
  • The BUZZ RACK Spark comes with a 5 function 13 pin lighting system, with UK compliant fog lights, i.e. the fog light is on the right hand side / offside. An adapter is available if you have a 7 pin socket.
  • The build quality - tube bending, welding, rust proofing, painting, component quality, is exemplary. All tools you might need are provided.
  • It's TÜV approved to ISO standard R15264-4, a standard some way tougher than current requirements.
  • We also think it looks great!

You'll need a lighting adapter if your vehicle has a standard UK style 7 pin socket - buy this rack from us this season and we'll give you this for free, saving up to £20 at typical prices!

Exchange scheme: Tow bar carriers are part of our 90 day exchange scheme - click on the link below for details - so you can order without financial risk. All current tow bar carriers from all the brands we stock are available for exchange, including Pendle and Thule, even if they are no longer part of our standard stock range.

BUZZ RACK is manufactured by King Rack of Taiwan, a specialist bike sector engineering company since 1996. Their factory is state of the art, with much of their production being tube bending, specialist welding and finishing for well known brands.

View Specs Sheet PDF

Technical specifications at a glance:

Max number of bikes: 2

Fits bolt on tow ball: yes

Fits swan neck / detachable tow ball: yes

Dimensions: 109cm x 59cm (measured from the centre of the tow ball mount to the outside edge of the number plate holder)

Dimensions when folded: 94 x 67 x 31cm

Weight: 16.0kg

Max load capacity: 45kg

Max weight per bike: 25kg

Fits wheelbases: 53-119cm

Max tyre width: 3.5" (a longer wheel strap is available) or 4.6" with the fat tyres adapter

Tilting: yes

Integral lighting board: yes

Lighting board plug type: 13 pin (7 pin adapter available included)

Bike carrier to tow ball lock: yes

Bike carrier to bike lock: yes

Possible to tow when in use: no

Fits with a spare wheel: no

Guarantee: 3 years

Useful information:

The maximum permitted load you can carry is also determined by your nose weight; you will need to check you don’t exceed this before using any tow ball mounted bike carrier.

Requires 65mm clearance from centre of tow ball to rear of vehicle.

We offer our existing customers a full "Next Day if possible" spares service, and will cannibalise new stock as required to find you the parts you need.

To find the spare parts you need, please see the diagram below, identify the product codes, then choose them from the list below. If you need more than 1 of any item, change the quantities in the Shopping Basket.



BUZZ RACK EasyTilt (Spark) rack spare parts

Item: Description: Our price (each): RRP:
Bike carrier accessory: Buzz Rack EasyTilt/Spark/Wing long wheel strap (x1) 392mm £5.95
BUZZ RACK spares (small): 118-00141-66 - Vertical support bracket £1.75
BUZZ RACK spares (small): 130-00541-01 - Arm End Cap £1.00
BUZZ RACK spares (small): 130-00575-01 - License Plate Holder £5.00
BUZZ RACK spares (small): 130-00637-05 - green wheel strap pad £1.80
BUZZ RACK spares (small): 130-00668-01 - End Cap £0.50
BUZZ RACK spares (small): 130-00669-01 - Clamp tube clip £2.50
BUZZ RACK spares (small): 130-00674-01 - Buzz Rack Spark Light Holder £3.50
BUZZ RACK spares (small): 130-00678-01 - Light Support Bracket £0.50
BUZZ RACK spares (small): 130-00686-01 - Wheel Support £3.50
BUZZ RACK spares (small): 132-00022-05 - T-tool £1.00
BUZZ RACK spares (small): 140-1106-005-58 - button head screw M6 x 25 £0.50
BUZZ RACK spares (small): 140-1106-009-58 - Button head screw M6x40mm £0.50
BUZZ RACK spares (small): 140-3986-001-49 - Self tapping screw £0.50
BUZZ RACK spares (small): 141-0106-001-58 - nylock nut M6 £0.55
BUZZ RACK spares (small): 142-1065-001-58 - washer 6.5 x 11.5 £0.35
BUZZ RACK spares (small): 142-1065-005-58 - washer 6.5 x 19 £0.60
BUZZ RACK spares (small): 144-00009-56 - allen key £1.15
BUZZ RACK spares (small): 145-00054-50 - Clamp Spring £0.75
BUZZ RACK spares (small): 3201-00109-34P - Clamp Tube 40mm £0.50
BUZZ RACK spares (small): 3201-00281-34P - Clamp Tube 300mm £1.25
BUZZ RACK spares (small): 3508-00649-01 - Bolt 205mm with cap £1.50
BUZZ RACK spares (small): 3508-00673-01 - Bolt 465mm with cap £1.50
BUZZ RACK spares (small): 3509-00238-99 - Cam Lever £3.50
BUZZ RACK spares (small): 3509-00295-05 - Buzz Rack Spark ratchet for wheel strap £3.50
BUZZ RACK spares (small): 47-0028-014-05 - Longer clamp - silver £15.00
BUZZ RACK spares (small): 47-0113-009-01 - Knob £2.50
BUZZ RACK spares (small): 47-0113-093-01 - Locking knob £4.50
BUZZ RACK spares (small): 47-0113-096-01 - Clamp sub-assembly £5.00
BUZZ RACK spares (small): 47-0148-000-05 - Shorter clamp silver £15.00
