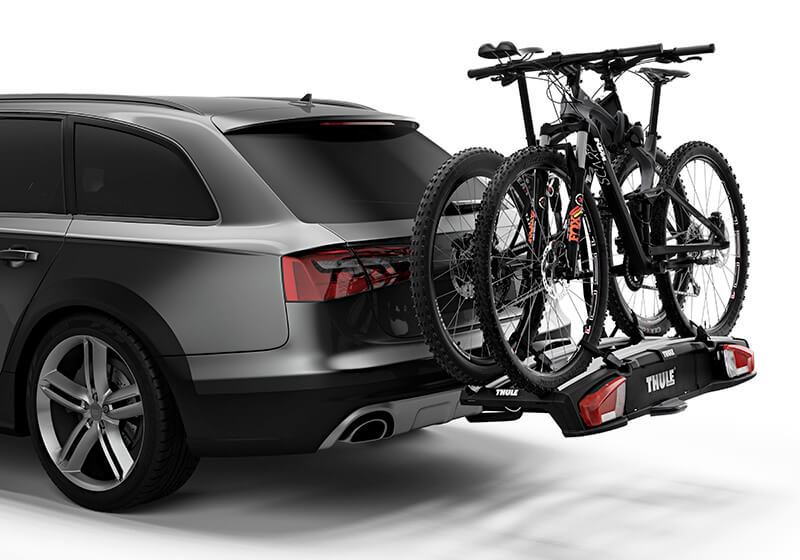

Thule VeloSpace XT 2 bike tow bar carrier no. 938

£544.95
RRP: £682.50
Code: TU938

Packed full of useful features that allow you to carry all types of bikes. It's developed for heavy bikes, such as eBikes. It's also a great option if you have a fat bike. It works just as well with road bikes and children's bikes.

  • Extra-long wheel trays take larger bikes up to a 1300mm wheelbase
  • Extra-wide distance between the wheel holders (25cm) makes it easier to load the bikes
  • Extra long wheel straps (available separately) will even take fatbikes up to 4.7"

Developed for heavy bikes, such as eBikes. It's also a great option if you have a fat bike. Its full length wheel trays makes it equally suitable for smaller bikes too. It's got a greater distance between each bike making loading easier, especially if you've got electric bikes or chunky downhill forks. The upright isn't quite as large as many tow bar racks. As a result there are some very large bikes that won't fit in this rack (e.g. some full-suspension eMTBs where you cannot attach the bike arm lower down on the bike because of the battery or suspension).

It's a decent rack and has a foot operated tilt function accessed from the front of the bike carrier, near the lights - that's a major plus point. The tilt mechanism allows you to open the tailgate without removing the bikes, which is often very useful. The detachable frame holders are lockable and are easy to move, making loading bikes much easier. They click when the right tension is reached so you know frame holder is tight enough.

It's supplied largely pre-assembled, and clamps onto the tow ball. It is suitable for all types of tow ball. When you place the rack on the tow ball it stabilizes itself, allowing you to position it correctly before locking down the handle.

There's a range of useful accessories available to ensure you get the most of our your bike rack - shown below. These include an optional loading ramp to make loading and unloading much easier; just wheel your bikes up the ramp. A transportation wheel (also available separately) can be attached to the rack making it easier to transport to and from the car.

You can even add an easily accessible cargo box (BackSpace XT cargo box no. 938300) to convert this bike carrier into an all-round load carrier. A great option if your roof is already taken up with other gear.

Other specifications:

  • Max load capacity: 60kg (tow bar nose weight limit permitting)
  • Weight: 18.7kg
  • Fits frames 22 to 80mm
  • Fits tyres up to 3.5" - extra long wheel straps (available separately) will even take fatbikes up to 4.7"
  • Maximum wheelbase: 1300mm
  • The upright can be folded for easier storage
  • The 938 comes with a 13 pin plug for 13 pin continental type electric sockets (we include a free adapter if you have a 7 pin socket).

This carrier is not designed for vehicles with a rear door mounted spare wheel.

This rack fits most tow balls but there are some it won't fit. It's important you check the measurements in the diagram below to make sure this rack will fit your tow ball.

Bike compatibility

Maximum number of bikes2 (3 with adapter TU9381)

Maximum number of e-bikes2

Maximum bike weight30kg

Maximum load capacity60kg

Fits tyre widths up to3.5 inches (4.7 inches with adapter TU985)

Maximum wheelbase1300mm

Maximum wheel size29 inches

Tow Bar information

Lighting board plug type13 pin. (7 pin adapter included)

Integrated lighting boardYes

Fits bolt on tow ballYes. most - check the diagram above for measurements

Fits swan neck / detachable tow ballYes. most - check the diagram above for measurements

Tow bar clearance required65mm. from centre of tow ball to rear of vehicle

Possible to tow when in useNo

Fits with a spare wheelNo

Tilting mechanism

Tilting MechanismTilts

Security

Tow Bar to carrier lockYes

Carrier to bike lockYes

General information

BrandThule

Guarantee2 years. (plus an extra 3 years if you register the product with Thule)

Width1350mm

Height790mm. (250mm when folded)

Depth690mm. (740mm when folded)

Weight18.7kg

Distance between bikes250mm

Thule One Key System

We offer our existing customers a full "Next Day if possible" spares service, and will cannibalise new stock as required to find you the parts you need.

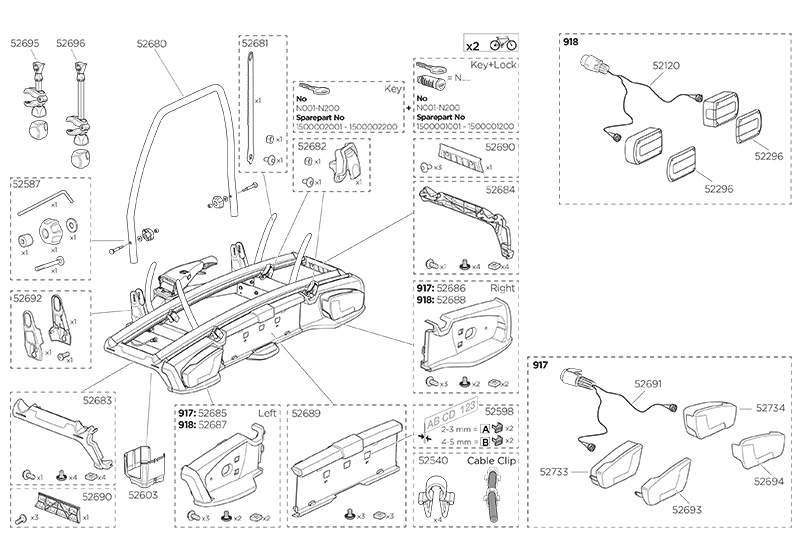

To find the spare parts you need, please see the diagram below, identify the product codes, then choose them from the list below. If you need more than 1 of any item, change the quantities in the Shopping Basket.



Thule VeloSpace spare parts

Item: Description: Our price (each): RRP:
Thule spares (small): 30206 - 1 x Thule OKS lock barrel (key not included) £8.00 £10.00
Thule spares (small): 50895 - bolt + knob set £9.95
Thule spares (small): 52120 - cable set minipoint 1400mm £24.95
Thule spares (small): 52296 - lamp cover minipoint 7 pin £19.95
Thule spares: 52415 - bike arm silver short (newer acutight model) £29.95
Thule spares (small): 52540 - cable clip x4 £1.95
Thule spares (small): 52587 - u frame fixings £14.95
Thule spares (small): 52596 - Second bike arm (372mm) for Thule VeloSpace XT £39.95
Thule spares (small): 52598 - lighting board clips (x4) £4.95
Thule spares (small): 52603 - VeloSpace tow ball housing foot £9.95
Thule spares: 52623 - Velocompact Wheel strap £4.95
Thule spares (small): 52632 - rubber spring £5.25
Thule spares (small): 52680 - VeloSpace upright frame £44.95
Thule spares (small): 52681 - wheel strap set (40cm) x1 £4.95
Thule spares (small): 52682 - Wheel strap buckle £19.95
Thule spares (small): 52690 - End cap cover £4.95
Thule spares (small): 52692 - Upright cam lever £4.95
Thule spares (small): 52693 - Light cover left (for 917 bike carrier) £24.95
Thule spares (small): 52694 - Light cover right (for 917 bike carrier) £24.95
Thule spares (small): 52906 - 938 Wheel tray end cap left £9.95
Thule spares (small): 52907 - 938 Wheel tray end cap right £9.95
Thule spares (small): 52908 - Light holder kit left £14.95
Thule spares (small): 52909 - Light holder kit right £14.95
Thule spares (small): 52910 - Number plate holder £19.95
Thule spares (small): 52970 - 939 Cable set £64.95
Thule spares (small): 52971 - 939 Light set left £39.95
Thule spares (small): 52972 - 939 Light set right £44.95
Spares Spare keys - charge for 1 key (brand & barrel number TBA) £7.50

Deciding which bike carriers to buy is not always easy, especially as you may not have had experience of using bike carriers before. We hope that our buying guides provide useful guidance about which bike carrier 'strategy' will be most appropriate for your circumstances, as well as highlighting the best features of particular models. We also have troubleshooting FAQs - for example, some customers struggle at first to fit four bikes onto a tow ball carrier, and wonder whether a different carrier would allow the bikes to be spaced wider apart. (It won't, but we have some good tips which make bike fitting much easier.)

Our bike carriers Exchange Scheme covers roof mounting and tow ball mounting bike carriers only. Rear door mounting / strap on carriers are not included, and nor are roof bars. It allows you to exchange within 90 days of invoice date. Most exchanges are for roof mounting upgrades, or are tow ball carriers with very basic tilting systems being exchanged for easy to use sliding / tilting carriers.

These are the rules of the bike carriers Exchange Scheme:

  • You are allowed one exchange only.
  • The original equipment must be in "as new" condition, subject only to fair wear and tear.
  • The replacement items must be different models from the originals.
  • The replacement items must not be part of a package deal or be from our Bargains section.
  • Roof bars are never part of the Exchange Scheme.

This is how the exchange scheme works:

  • We charge in full for the replacement items, including the appropriate carriage charge and a charge for any packaging needed for the return of the originals.
  • We pay the return carriage costs.
  • When the originals arrive back here we refund you for their invoice value, but you won't get back more than the invoice value of the replacements. In other words, if the replacements are cheaper than the originals we won't be giving you "extra cash back".

Please note: we can only collect items from mainland UK.

Delivery charges and arrangements:

We charge a contribution towards delivery costs, depending on what you order, where you live, and how quickly you want the goods.

These are our standard charges; there are usually surcharges for all offshore destinations and some remote postcodes - for details please see our delivery information page.

Delivery of this item

Standard sized items (Roof bars, bike carriers and most other items)
Express Delivery £ 9.50 1 to 2 working days
Standard Delivery £ 6.50 3 to 4 working days

Delivery of other items

Small items & Spare parts
Express delivery £ 6.95 1 to 2 working days
Standard delivery £ 4.95 3 to 4 working days
Roof boxes
Express Delivery £ 19.50 1 to 2 working days
Standard Delivery £ 14.50 3 to 4 working days
Dropracks and Roof tents
Express Delivery £ 19.50 2 working days

Delivery times

Delivery times are calculated in working days (Monday to Friday, excluding Bank holidays).

Cut-off times for Express Delivery orders
Express Delivery orders placed before before the cut-off times shown below will usually be desptached on the date of order. Express Delivery orders placed after these cut-off times will be despatched the next working day.

Small and Standard Sized Items Order by 4pm for same day despatch
Roof Boxes, Dropracks and Roof Tents Order by 1pm for same day despatch

Delivery FAQs

When will my order arrive?
There are no deliveries on Saturdays, Sundays or Bank Holidays, except for postable items where Royal Mail has a Saturday delivery. Express Delivery orders placed on a Friday (before 1pm) should be delivered on the Monday or Tuesday, Express Delivery orders placed on a Saturday or Sunday should be delivered on the Tuesday or Wednesday. The arrangements for Very Heavy Items are different and are shown above.

What about Next Working Day delivery?
We have offered a reliable Next Working Day service for well over 20 years but, due to the pressure on the couriers caused by the coronavirus crisis and the huge increase in online shopping, we can no longer be confident about the delivery date, which is why we now call the service ‘Express delivery’. Most Express delivery orders will arrive on the next or second working day, but some will arrive on the second or third working day, or be split between these days. So-called “split deliveries” happen when the couriers do not have enough trailer space for everything that should be moved around the UK, so they will load what they can and leave the rest for the next trailer.

Is my delivery day guaranteed?
No retailer or courier company can ever "guarantee" a Next Working Day delivery. As well as split deliveries, all courier companies occasionally have the same transport problems as can happen to everyone else, including snow blocked roads, closed roads, traffic jams, mechanical breakdown, an inability to find the delivery address, or to gain access to it if, for example, it's in a block of flats. We work with some of the best couriers in the business, and overall they provide an outstanding service.

Do I need to be at home?
We are very flexible with our deliveries and will aim to deliver to an address which suits you – this does not need to be your home address. Goods can usually be left without signature - we prefer this with roof boxes. There's a "Special Delivery Instructions" box in the checkout area where we'll ask you to choose a typical instruction and then amend it to suit your particular requirements.

Payment options:

We take the following cards, and also PayPal. Please note that the entry on your card statement will be from "The Roof Box Company".

PayPal accepted

Secure payments

Our website is secured by Sectigo (formerly Comodo CA), the largest commercial Certificate Authority in the world.

Secured by Sectigo Multi Domain SSL

Bike carriers with 7 pin plugs

Wheel support bike carriers which are supplied with 7 pin plugs usually only include rear lights, brake lights and indicator lights, which is why they are often called ‘3 function lights’.

Unusually, Thule bike carriers with 7 pin plugs also include a fog light; this works when plugged into 7 pin electrics, but it does not work when plugged into 13 pin electrics via an adapter.

Bike carriers with 13 pin plugs

Bike carriers which are supplied with 13 pin plugs include a fog light and reversing light, as well as rear lights, brake lights and indicator lights – which is why they are often called ‘5 function lights’.

If these are plugged into 13 pin electrics then all 5 functions will work.

If they are plugged into 7 pin electrics via an adapter then the fog light should work, but the reversing light on the bike carrier will not work.

Please note

These notes assume that your tow bar electrics have been wired correctly!

Tow bar wiring in the digital age is much more complicated than it used to be when everything was analogue. Our experience is that if you are having lighting problems, e.g. a fog light does not work in 7 pin tow bar electrics, the problem is much more likely to be caused by the wiring, not by a dud bulb in the bike carrier.
