TowBox V1 towball-mounted 280L rear box, green, TBX000H

There has long been a market for carrying luggage boxes behind vehicles rather than on the roof, mainly for ease of access. Most of these rear boxes are quite basic, and are usually fixed to separate platforms or onto tow bar mounted bike carriers.

Only one brand that we know of has really given this sector the attention it deserves, TowBox, a brand created and developed over more than 15 years by Spain’s premier designer and manufacturer of towbar systems, Enganches Aragón.

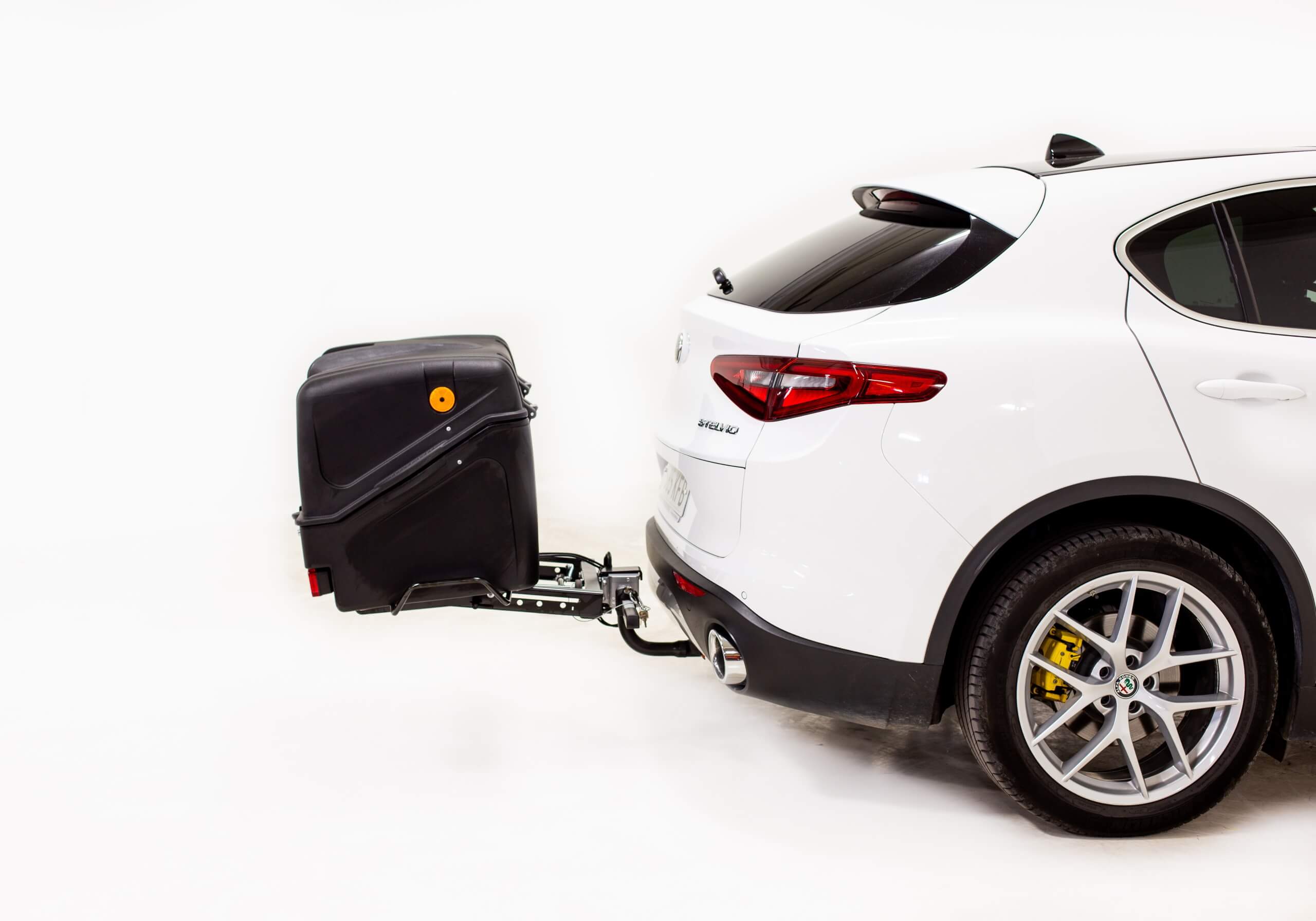

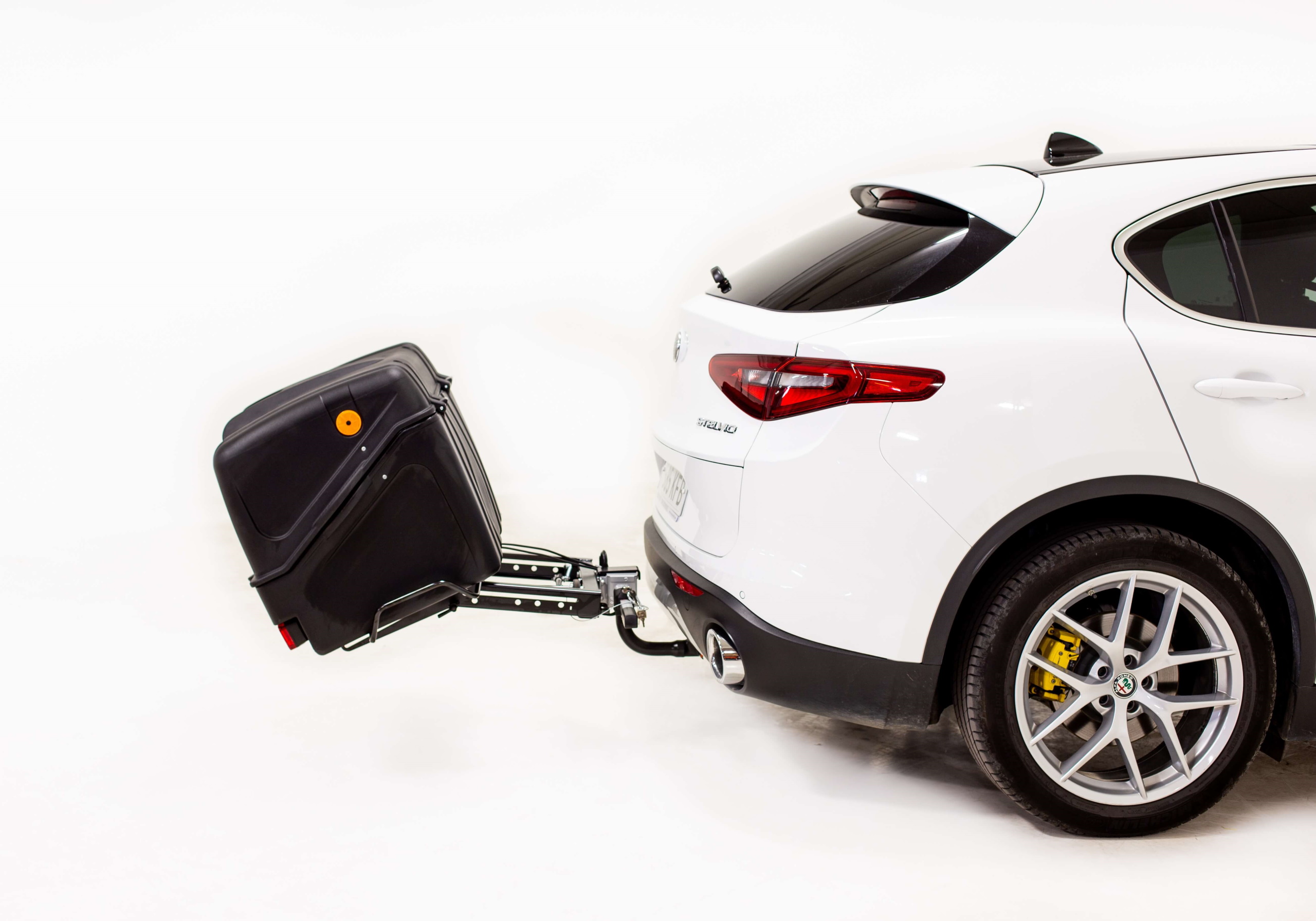

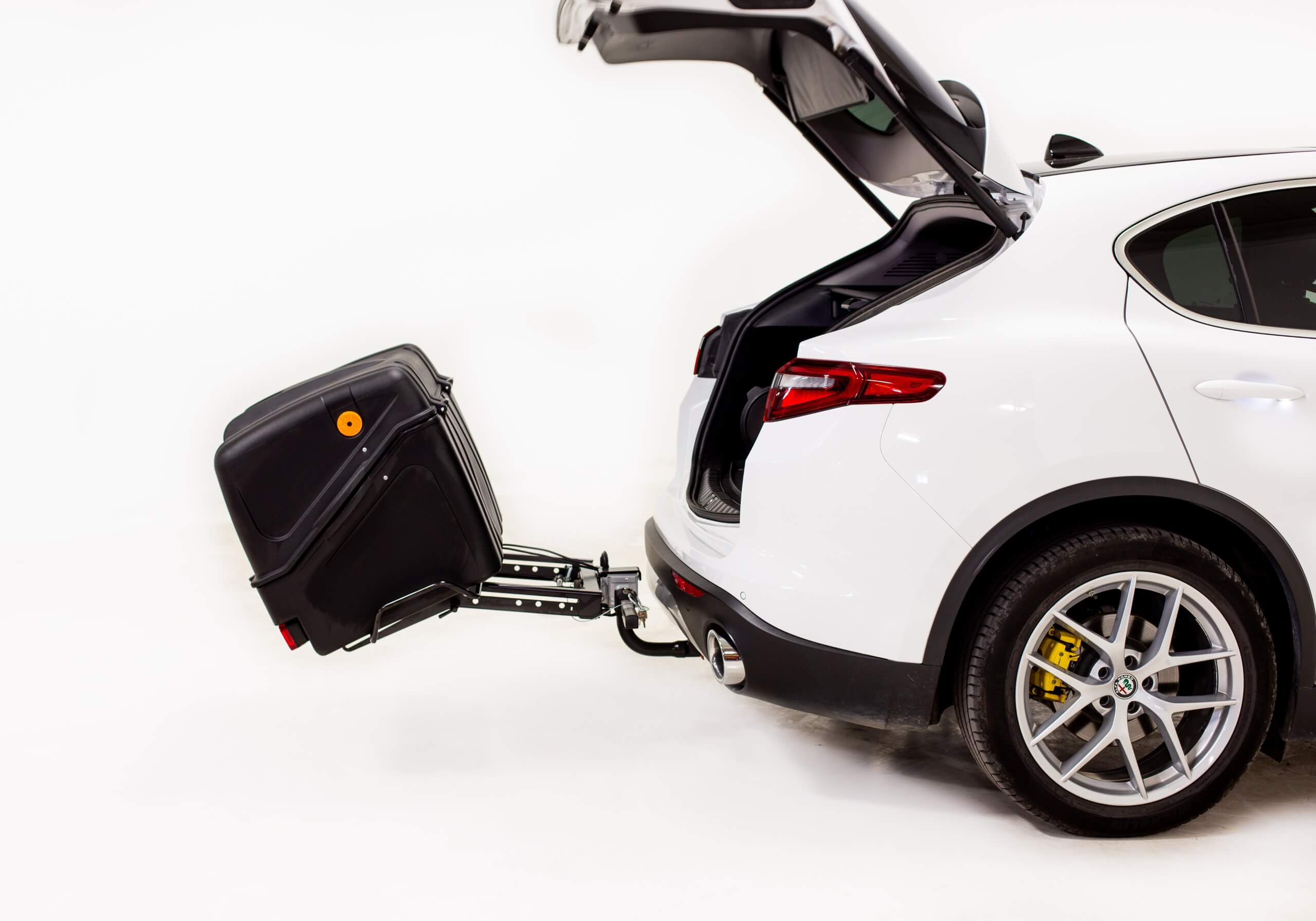

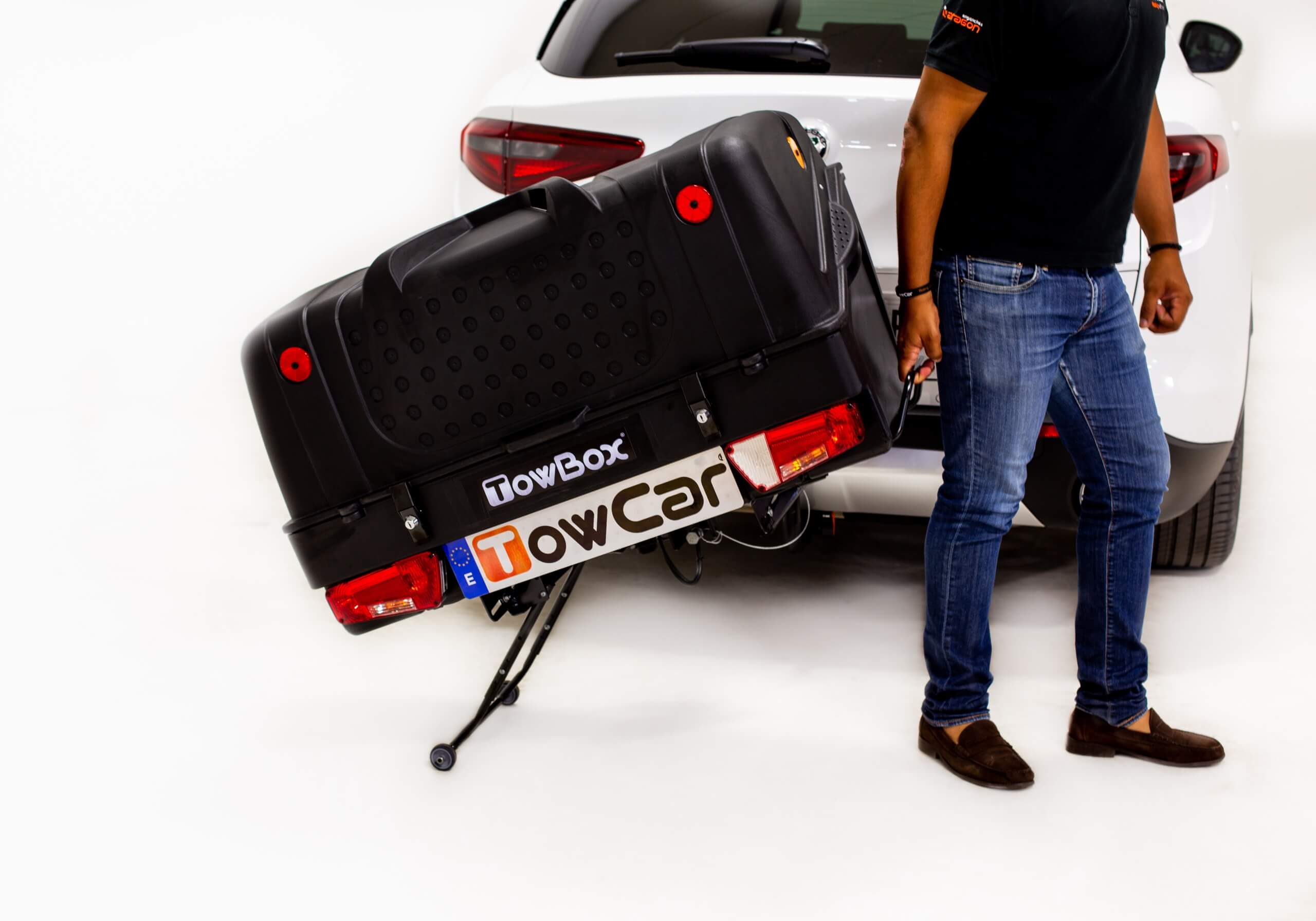

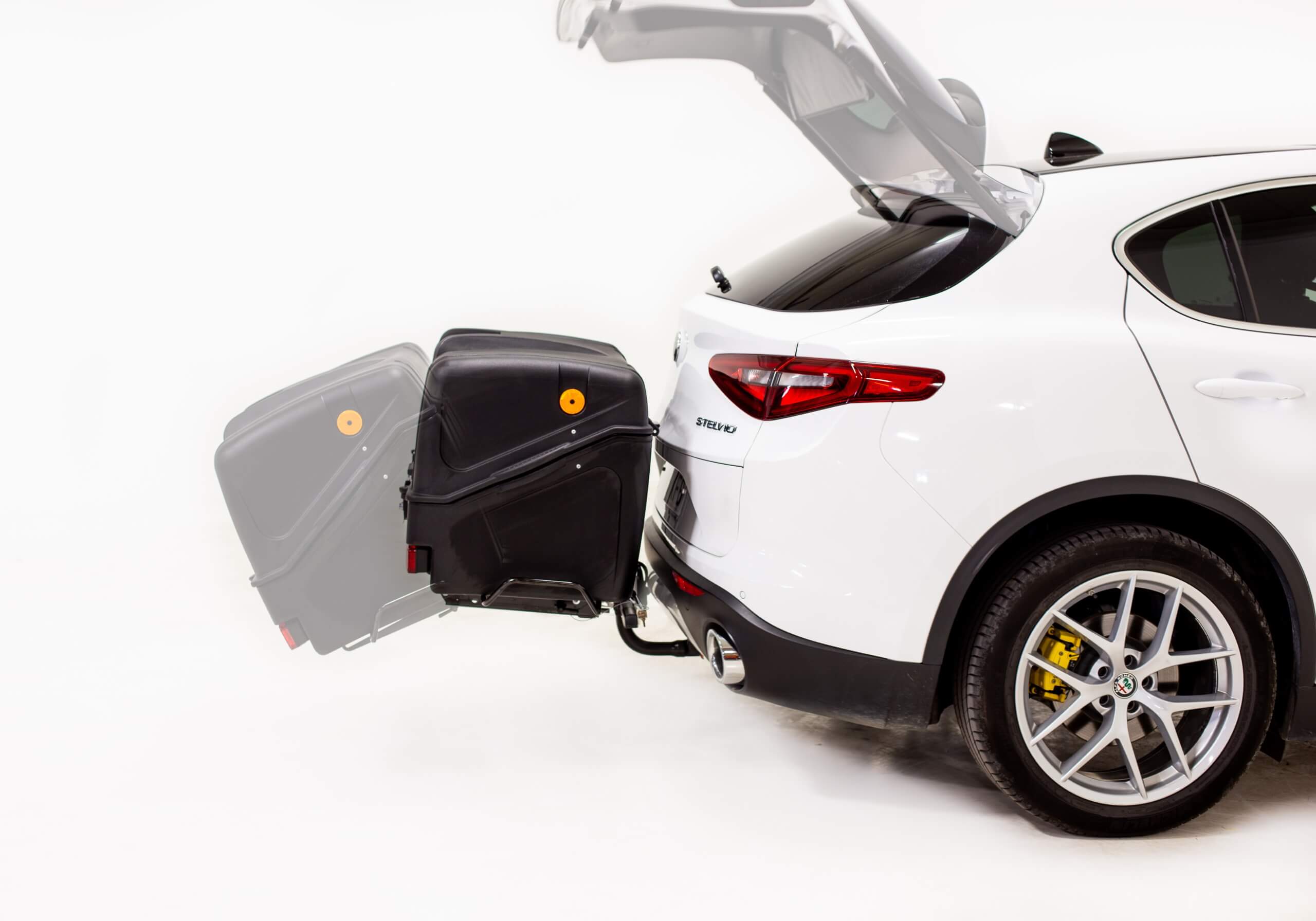

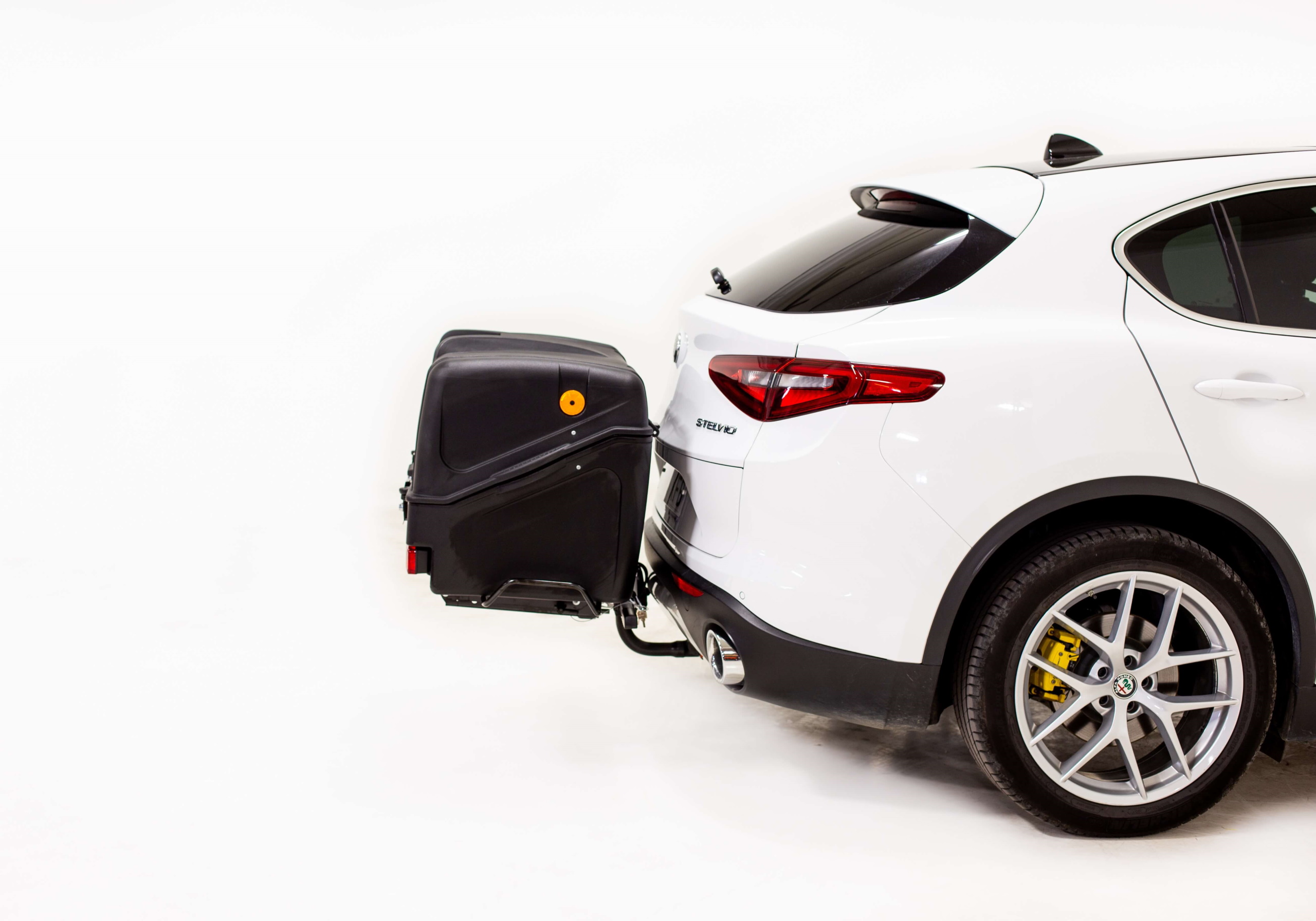

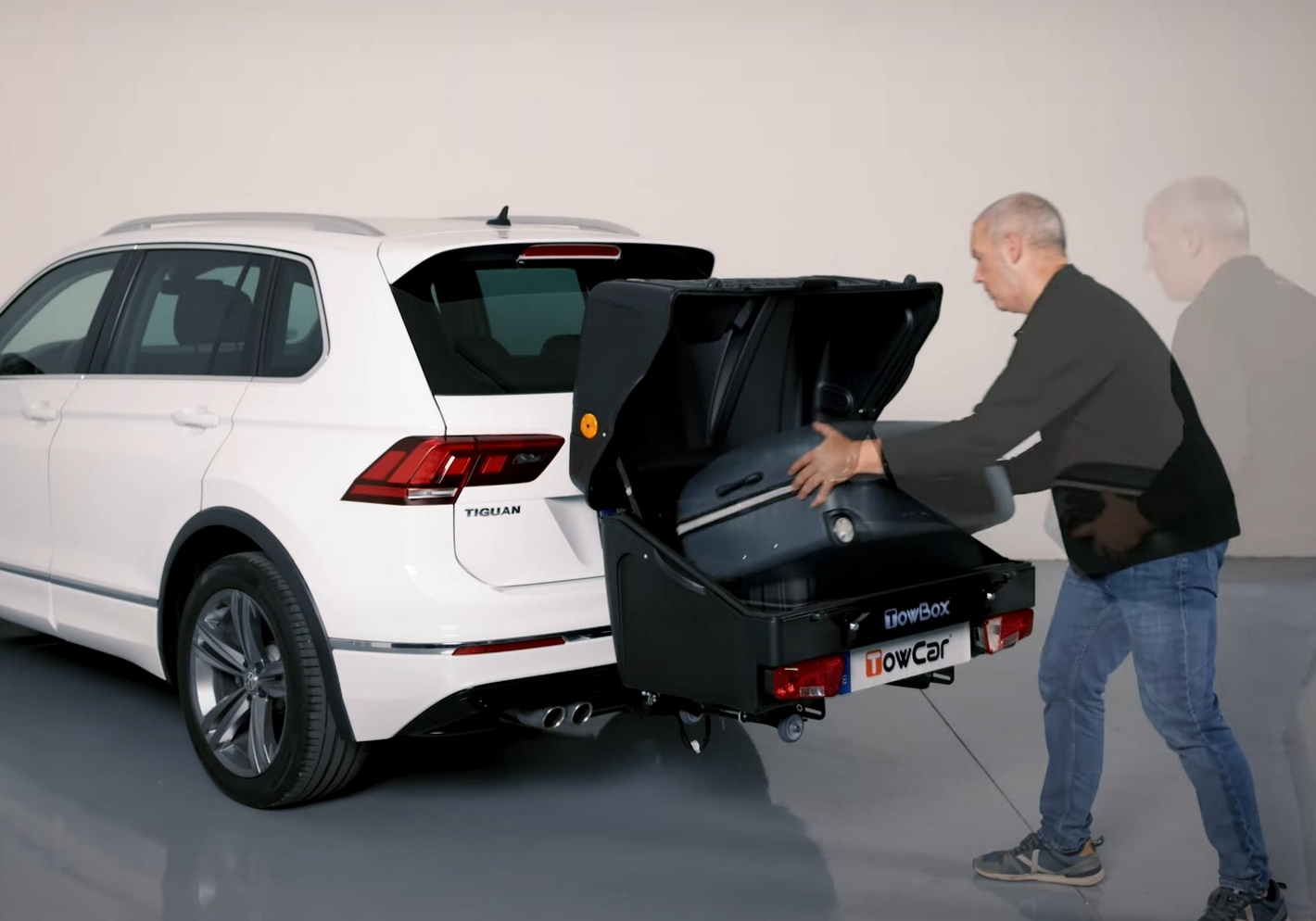

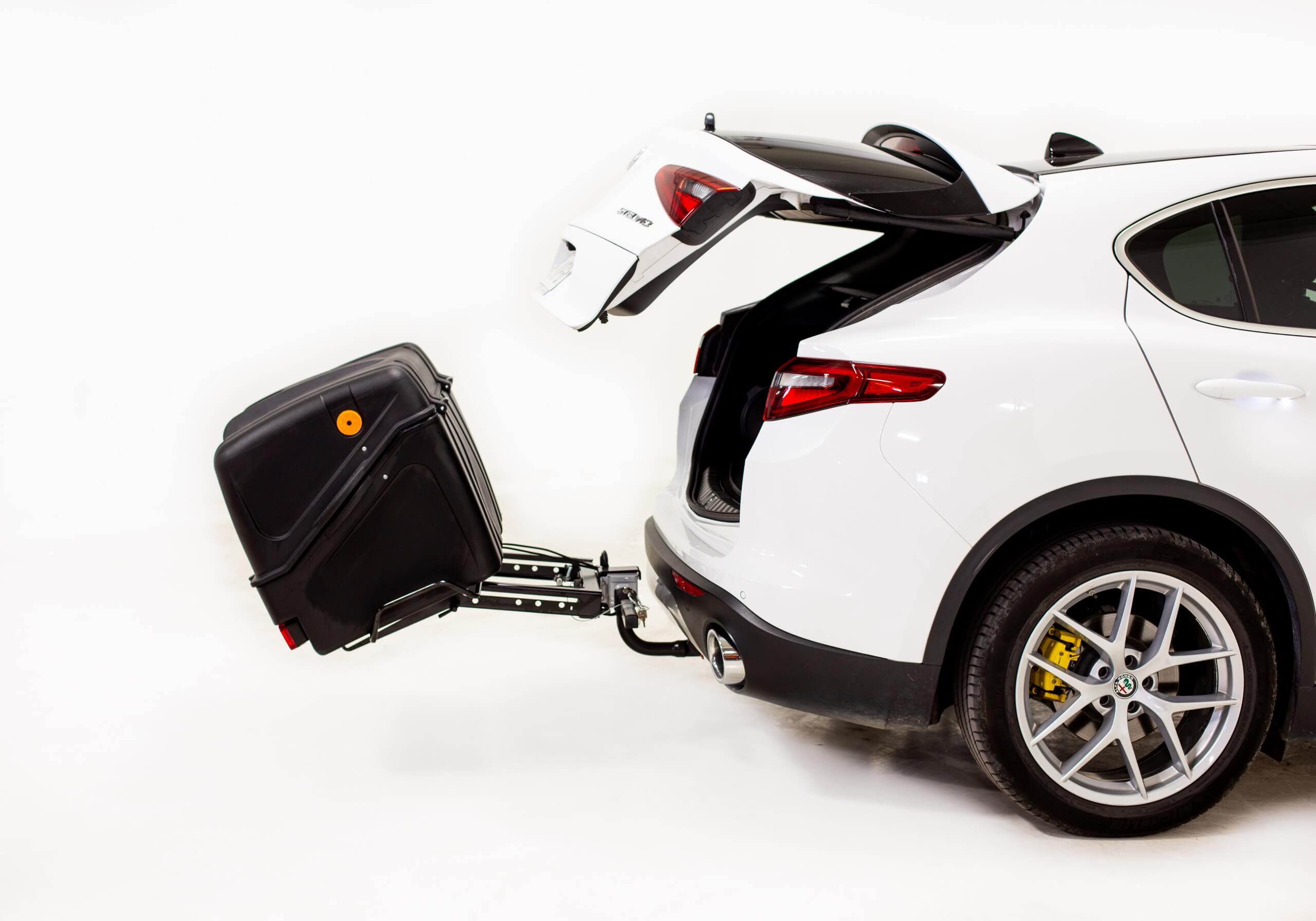

They have created a range of rear boxes that are strong, secure, and water-resistant to IP44. TowBox V1 can not only be tilted, via a control handle on the outer edge of the box, but it slides away from the rear of the vehicle before tilting, to allow easy access to the boot space - this is a really useful feature (unfortunately it won't tilt far enough to allow vertical tailgates or barn-doors to open). To keep the centre of gravity as close to the vehicle as possible, and to allow for maximum loading, the TowBox V1 slides over the tow ball coupling system before driving, another very neat solution.

TowBox V1 also has a 2nd mounting position, which gives a bigger gap between the box and the back of the vehicle. This feature allows the TowBox V3 to be used on vehicles with a spare wheel (the maximum load is reduced to between 30 - 40kg if you have to slide it out to accommodate the spare wheel).

TowBox V1 includes built-in five-function 13 pin lights (a 7 pin adapter is also included).

Rear-mounted boxes produce less drag than roof-mounted boxes, and are generally a better solution for electric vehicles. There’s no doubt that, all other things being equal (vehicle load weight, driving style and speed, and wind speed) a 390 litre roof box will use more of the vehicle's energy than a 390 litre box mounted behind the vehicle, although on the downside a rear mounted box will of course impose many more limitations on shape and size than a roof box, or an open roof rack. Additional drag is of particular importance for electric cars because the extra energy used will reduce the range available before recharging is necessary – fossil-fuelled vehicles usually have a longer range, can refuel much more quickly, and can carry their own extra fuel if necessary.

Specifications:

• External measurements: 110cm wide x 63cm deep x 66cm high
• Internal measurements: 93cm wide x 45cm deep x 55cm high
• Empty weight: 26kg
• Maximum payload: 50kg (tow bar nose weight limit permitting)
• Capacity: 280 litres
• City crash tested
• Some assembly required

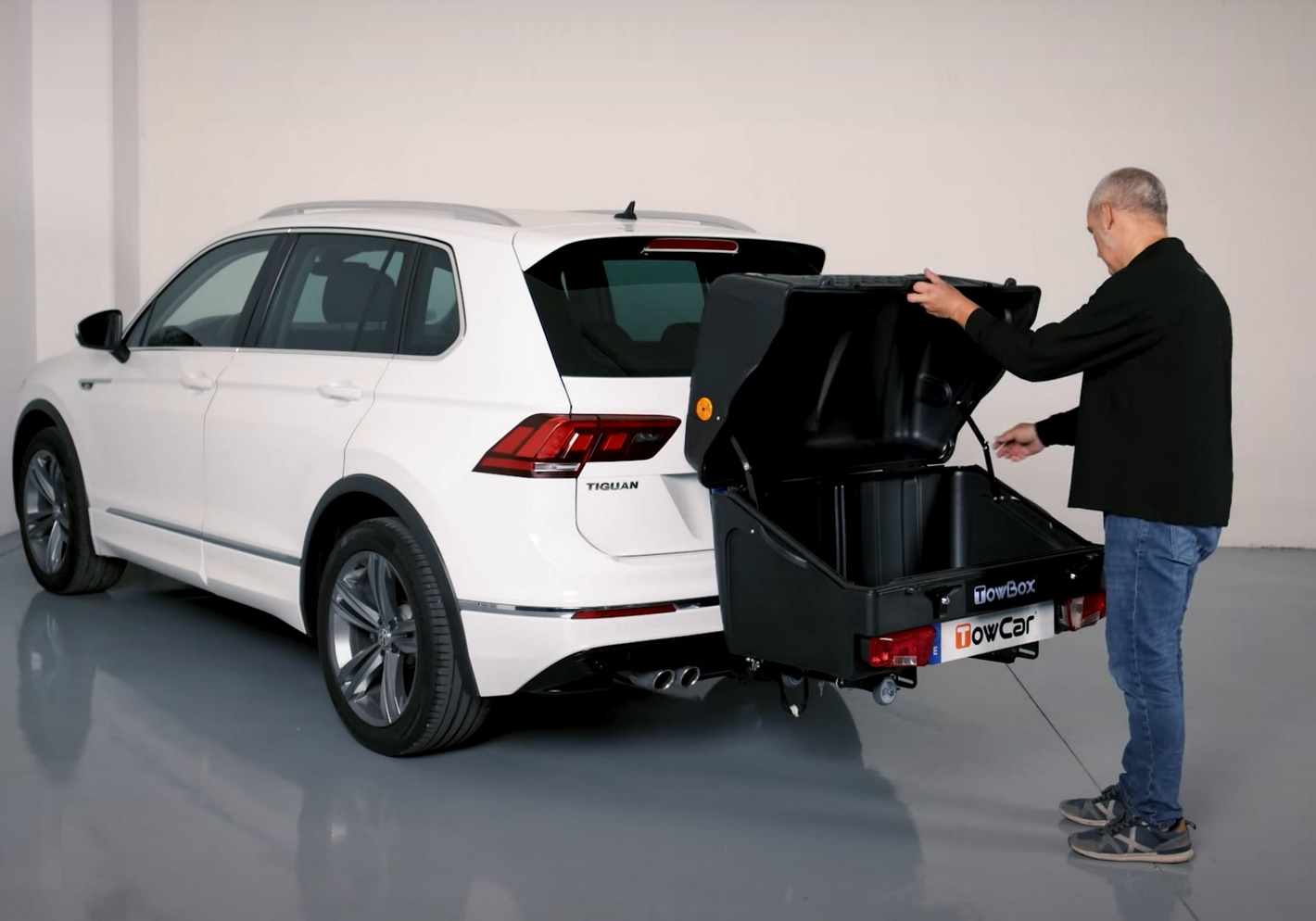

• The box locks and the whole system locks to the tow ball, additional holes for padlocks are also integrated into the box
• TowBox V1 may be fitted to vehicles with rear spare wheels (the maximum load reduces to between 30 and 40kg)
• A 13 to 7 pin adapter is included, allowing the TowBox V1 to be used on electrical systems with 7 pin sockets; note that the reversing light will not work unless a 13 pin socket is fitted, and probably not the fog light either - this depends on the details of your vehicle's tow bar wiring
• TowBox are water-resistant, tested to IP44 ('Protection against splash water from all directions'), the standard applied to all the rear boxes that we are aware of. Any rear box is particularly vulnerable to high pressure road spray, so please pack any vulnerable belongings in waterproof containers
• 5 year guarantee

TowBox are manufactured in Zaragoza (Saragossa) in Spain's Aragon region by Enganches Aragón, an ISO 9001:2015 company that is now over 30 years old, and is a major European manufacturer of tow bar systems. The first TowBox entered the market in 2009 - all models have been refined over time.

Technical specifications:

Dimensions (external): 110cm wide x 63cm deep x 66cm high

Dimensions (internal): 93cm wide x 45cm deep x 55cm high

Weight: 26kg

Max load capacity: 50kg (subject to tow bar noseweight)

Tilting: yes*

Integral lighting board: yes, 7 and 13 pin socket supplied

Lockable: tow ball and cargo box locks included

Fits with a spare wheel: yes

Guarantee: 5 years
