BUZZ RACK E-Hornet 3 (13 pin lights) bike tilting e-bike carrier no. BRP413
£354.95
Code: BRP413
In stock
The E-Hornet is now available with - 13 pin folding lights.
- Ideal for larger bikes and eBikes
- A solid and and robust rack
- Adjustable wheelholders and upright accommodate very large bikes
- Tilts to allow access to the boot
- The upright folds down for storage
The E-Hornet is now available with - 13 pin folding lights.
- Ideal for larger bikes and eBikes
- A solid and and robust rack
- Adjustable wheelholders and upright accommodate very large bikes
- Tilts to allow access to the boot
- The upright folds down for storage
BUZZ RACK carriers always have great build quality and this rack is extremely versatile too. It's strong enough to take bikes up to 30kg, so it's ideal for eBikes. It will also take a wheelbase up to 140cm and a bigger tyres up to 4". It's got a large upright so you'll have no problem securing MTBs with huge frames, it's equally suited to smaller bikes too. If you are looking for a versatile and future-proof rack for three bikes this should certainly be on your shortlist. Assembly: Even though it doesn't come assembled the E-Hornet 3 is very easy to put together: assemble the wheel support frame to the base using the supplied screws, assemble the light support with 2 more screws, install the license plate, slide in the plastic wheel supports, fit the rack to the tow ball with no tools needed and you are ready to go. Fitting to the car: When you first place it on the tow ball it supports itself - you can let go of it and it won't fall to the ground. You'll then take the weight again, spin the tightening wheel until it's tight, and lock it. BUZZ RACK's carriers comply with the very exacting standard XPR-18-904-4 and therefore include an anti-sway tensioner; this has an integrated handle and 2 or 3 turns are usually sufficient. Lighting system: This E-Hornet comes with a 13 pin lighting system, adapters are available if you need to use it on a vehicle with a 7 pin socket - see below. Tilting:Tilting is easy, and is very well balanced even with a full load. The E-Hornet sits quite high on the tow ball, and the tilt function is optimised to prevent the lights from hitting the road surface, while still using the weight of the bikes to help bring the bike platform back to the level again in a controlled way. But this geometry doesn't allow for vertical tailgates to be opened - the only tow bar carriers we know about that are suitable for these vehicles, e.g. VW Transporter T5 and T6, and MPVs such as the Vauxhall Zafira and Ford Galaxy, are the Atera STRADA DL3 and the Atera Genio Pro.
Exchange scheme: Tow bar carriers are part of our 90 day exchange scheme - click on the link below for details - so you can order without financial risk. All current tow bar carriers from all the brands we stock are available for exchange, including Atera and Thule, even if they are no longer part of our standard stock range. BUZZ RACK is manufactured by King Rack of Taiwan, a specialist bike sector engineering company since 1996. Their factory is state of the art, with much of their production being tube bending, specialist welding and finishing for well known bicycle and car rack brands. |

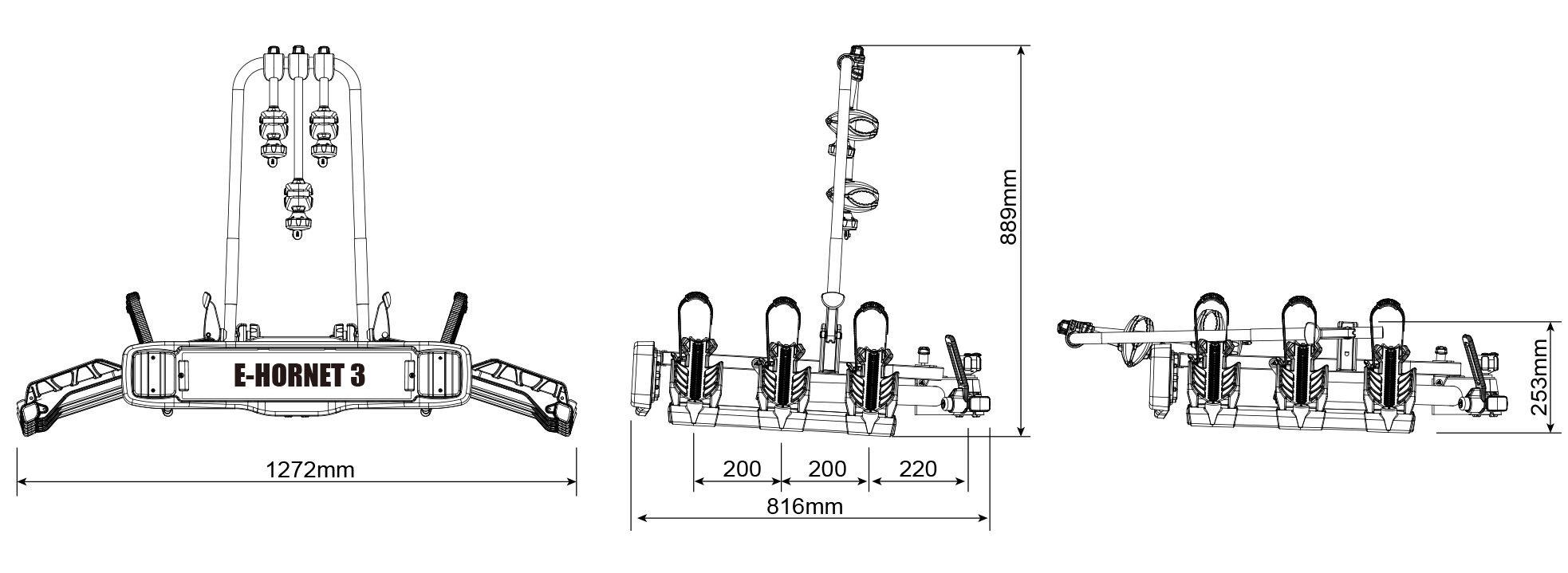

These diagrams show the version with the 7 pin lighting board but the measurements are just the same. ![]() Bike compatibilityMaximum number of bikes3 Maximum bike weight30kg Maximum load capacity60kg Fits tyre widths up to4 inches Maximum wheelbase1400mm. for 29” (1380mm for 26”) Maximum wheel size29 inches Tow Bar informationLighting board plug type13 pin. (7 pin adapter available separately) Integrated lighting boardYes Fits bolt on tow ballYes Fits swan neck / detachable tow ballYes Tow bar clearance required65mm. from centre of tow ball to rear of vehicle Possible to tow when in useNo Fits with a spare wheelNo. On some vehicles you can, but as a two bike carrier. If you have a rear spare wheel that sticks out beyond the centre of the tow ball, it’s likely that this will occupy the first bike space, and may even prevent the bike carrier being fitted at all. Tilting mechanismTilting MechanismTilts SecurityTow Bar to carrier lockYes Carrier to bike lockYes General informationBrandBuzz Rack Guarantee3 years Width1272mm Height889mm Depth760mm. (measured from the centre of the tow ball mount to the outside edge of the number plate holder) Weight19.7kg ColourBlack Distance between bikes200mm |
Deciding which bike carriers to buy is not always easy, especially as you may not have had experience of using bike carriers before. We hope that our buying guides provide useful guidance about which bike carrier 'strategy' will be most appropriate for your circumstances, as well as highlighting the best features of particular models. We also have troubleshooting FAQs - for example, some customers struggle at first to fit four bikes onto a tow ball carrier, and wonder whether a different carrier would allow the bikes to be spaced wider apart. (It won't, but we have some good tips which make bike fitting much easier.) Our bike carriers Exchange Scheme covers roof mounting and tow ball mounting bike carriers only. Rear door mounting / strap on carriers are not included, and nor are roof bars. It allows you to exchange within 90 days of invoice date. Most exchanges are for roof mounting upgrades, or are tow ball carriers with very basic tilting systems being exchanged for easy to use sliding / tilting carriers. These are the rules of the bike carriers Exchange Scheme:
This is how the exchange scheme works:
Please note that we can only collect exchange scheme items from mainland UK. |
Delivery charges and arrangements:We charge a contribution towards delivery costs, depending on what you order, where you live, and how quickly you want the goods. These are our standard charges; there are usually surcharges for all offshore destinations and some remote postcodes - for details please see our delivery information page.
Delivery of other items
Delivery timesDelivery times are calculated in working days (Monday to Friday, excluding Bank holidays). Cut-off times for Express Delivery orders
Delivery FAQsWhen will my order arrive? What about Next Working Day delivery? Is my delivery day guaranteed? Do I need to be at home? Payment options:We take the following cards, and also PayPal. Please note that the entry on your card statement will be from "The Roof Box Company". ![]() Secure paymentsOur website is secured by Sectigo (formerly Comodo CA), the largest commercial Certificate Authority in the world. ![]() ![]() |
Bike carriers with 7 pin plugs Wheel support bike carriers which are supplied with 7 pin plugs usually only include rear lights, brake lights and indicator lights, which is why they are often called ‘3 function lights’. Unusually, Thule bike carriers with 7 pin plugs also include a fog light; this works when plugged into 7 pin electrics, but it does not work when plugged into 13 pin electrics via an adapter. Bike carriers with 13 pin plugs Bike carriers which are supplied with 13 pin plugs include a fog light and reversing light, as well as rear lights, brake lights and indicator lights – which is why they are often called ‘5 function lights’. If these are plugged into 13 pin electrics then all 5 functions will work. If they are plugged into 7 pin electrics via an adapter then the fog light should work, but the reversing light on the bike carrier will not work. Please note These notes assume that your tow bar electrics have been wired correctly! Tow bar wiring in the digital age is much more complicated than it used to be when everything was analogue. Our experience is that if you are having lighting problems, e.g. a fog light does not work in 7 pin tow bar electrics, the problem is much more likely to be caused by the wiring, not by a dud bulb in the bike carrier. |
To find the spare parts you need, please see the diagram below, identify the product codes, then choose them from the list below. If you need more than 1 of any item, change the quantities in the Shopping Basket. |
Fitting PDFs
|
