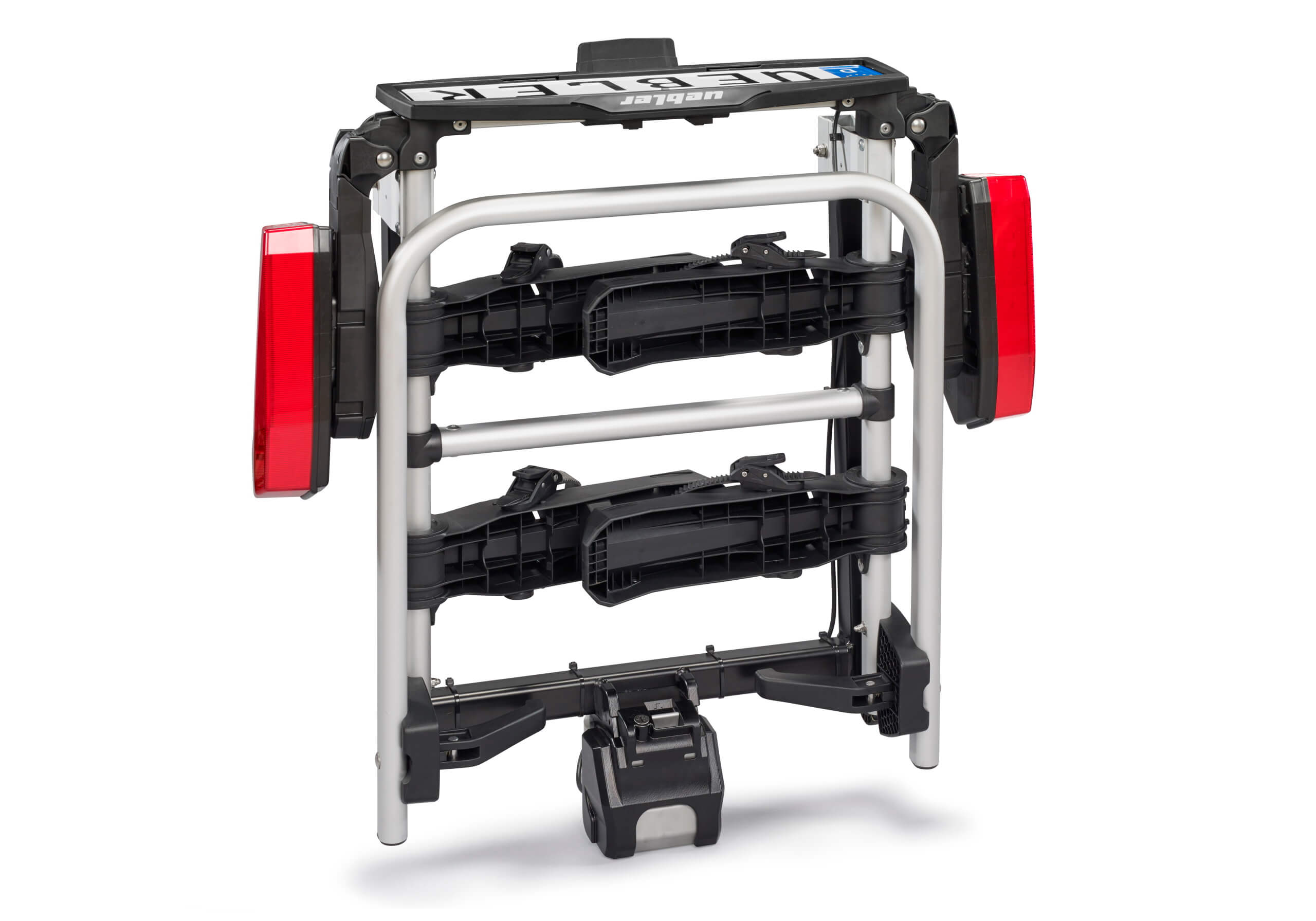

Uebler H21 Z90 tilting and folding eBike rack (2 bikes) with reversing sensors, no. 18170-DC

What makes the Uebler H series so special?

Uebler's H series are an ideal option for vans, even with twin rear doors, and will carry all types of bikes, even e-bikes (up 30kg and a maximum wheelbase of 130cm). They are fitted and removed when folded, with minimal strain on your back, and when folded are small enough to fit into the car boot, so you'll have no 'not enough parking length for the bike carrier' parking problems or risk of damage or theft of your bike carrier when you're out on your ride.

This one is the H21Z-DC - DC stands for Distance Control, i.e. reversing sensors, a 'plug and play' system with a neat visual and acoustic display unit which plugs into the cigarette lighter on the dashboard. It takes 2 bikes, comes as standard with the 'Z' ratchet strap bike holders for box section bikes - usually ideal for chunky eBikes. A three-bike version is also available (with standard bike arms).

This rack tilts to 90 degrees, making it especially suitable for vans with either vertical tailgates or twin rear doors - think Transporter, Transit, Ducato and Sprinter, for example. Because the tow ball fixing is lower profile than the Uebler i series, and there is more space between the tow ball and 1st bike, this rack is also suitable for vans with twin rear doors and very deep tailgates (where the tailgate or doors may catch on a larger tow ball fitting). Note, for most cars the i21S with 60 degree tilt will be all you need, and avoids the possibility outer bike's handlebars may well end up resting on the ground. This isn't a major problem, and you can protect the handlebar end, but it's as well to be aware of this before purchasing the H21Z.

If you haven't fitted a typical tow bar carrier before you're unlikely to appreciate the significant benefits of carrying it to the tow ball, and fitting it, from what is basically a vertical position rather than a horizontal position. A typical bike carrier imposes considerable strain on your back as you walk it towards the tow ball, with the carrier tending to bump against your shins or knees unless you're strong enough to hold it with straight arms. In contrast you walk Uebler's H series onto the tow ball, standing upright, then move it past the vertical and push it down until it clicks into position. The patented iQ fitting automatically adjusts and self-tensions for your particular tow ball. Fitting couldn’t really be faster or easier.

Other features and specifications:

• Tilting is done via a foot-operated lever below the number plate, so both hands are free to hold the outer bike and lower the load until it reaches the tilt-stop.
• The iQ tow bar fitting system includes a reassuring green indicator which shows when the rack is correctly fitted on the tow ball.
• Each bike holder arm is very easily fitted, repositioned or removed with only one hand, leaving the other hand free to support the bike. Position the bike holder arms wherever they can get a good grip on the bike frame or seat post without the risk of friction damage to bike paintwork.
• The Z bike holder arms include a long, reinforced strap and protective padding to protect the frame. The Z fittings are designed for larger eBike frames (but work equally well for smaller frames).
• Maximum bike frame diameter for the standard Z bike holder arms: 115mm round tube, 120 x 80mm rectangular tube, 95 x 95mm square tube.
• The H21Z has an unusually wide 240mm between the wheel tray centres, making it easier to load chunky downhill MTBs and eBikes, also reducing the risk of the bikes rubbing together.
• The wheel trays are particularly wide - making them suitable for wider tyres.
• Wheel straps for tyres up to 3" are supplied as standard; longer straps for tyres up to 4.5" are shown in the accessories list below.
• The lights are 13 pin ‘5 function’, including fog lights and a reversing light; in any event we will include free of charge (unless you know you don't need this and you 'untick the box') the lighting adapter you will need if you have a 7 pin lighting socket. Note that the fog lights should work with a 7 pin system, but the reversing light won't work.
• Everything is lockable; the rack is locked to the car and each bike is locked to the rack, all using the same key.
• A loading ramp and storage cover are available as accessories.
• There's a full spares programme.
• Dimensions when folded (W x H x D): 83 x 21 x 85cm
• Dimensions when unfolded (W x H x D): 128 x 73 x 88cm
• 3 year warranty.
• Made in Germany. Everything except the lighting units and wiring, even the plastic parts, is made in the factory in Forchheim in Bavaria, Germany.

Uebler H series are part of our 90 day exchange scheme; see the tab for full details.
