Uebler H31 S90 tilting and folding eBike rack (3 bikes) with reversing sensors,no. 18180-DC

What makes the Uebler H series so special?

Uebler's H series are an ideal option for vans, even with twin rear doors, and will carry all types of bikes, even e-bikes (up 30kg and a maximum wheelbase of 130cm). They are fitted and removed when folded, with minimal strain on your back, and when folded are small enough to fit into the car boot, so you'll have no 'not enough parking length for the bike carrier' parking problems or risk of damage or theft of your bike carrier when you're out on your ride.

This one is the H31S-DC - DC stands for Distance Control, i.e. reversing sensors, a 'plug and play' system with a neat visual and acoustic display unit which plugs into the cigarette lighter on the dashboard. It takes 3 bikes, comes as standard with the 'S' bike holder arms for frames up to 75mm round tube (75 x 45mm oval tube). Note that the Z bike holder arms, the ones with a ratchet strap, are shown below as accessories - some customers buy this rack plus one or two Z bike holder arms for the occasional transport of eBikes with frames greater than 75mm..

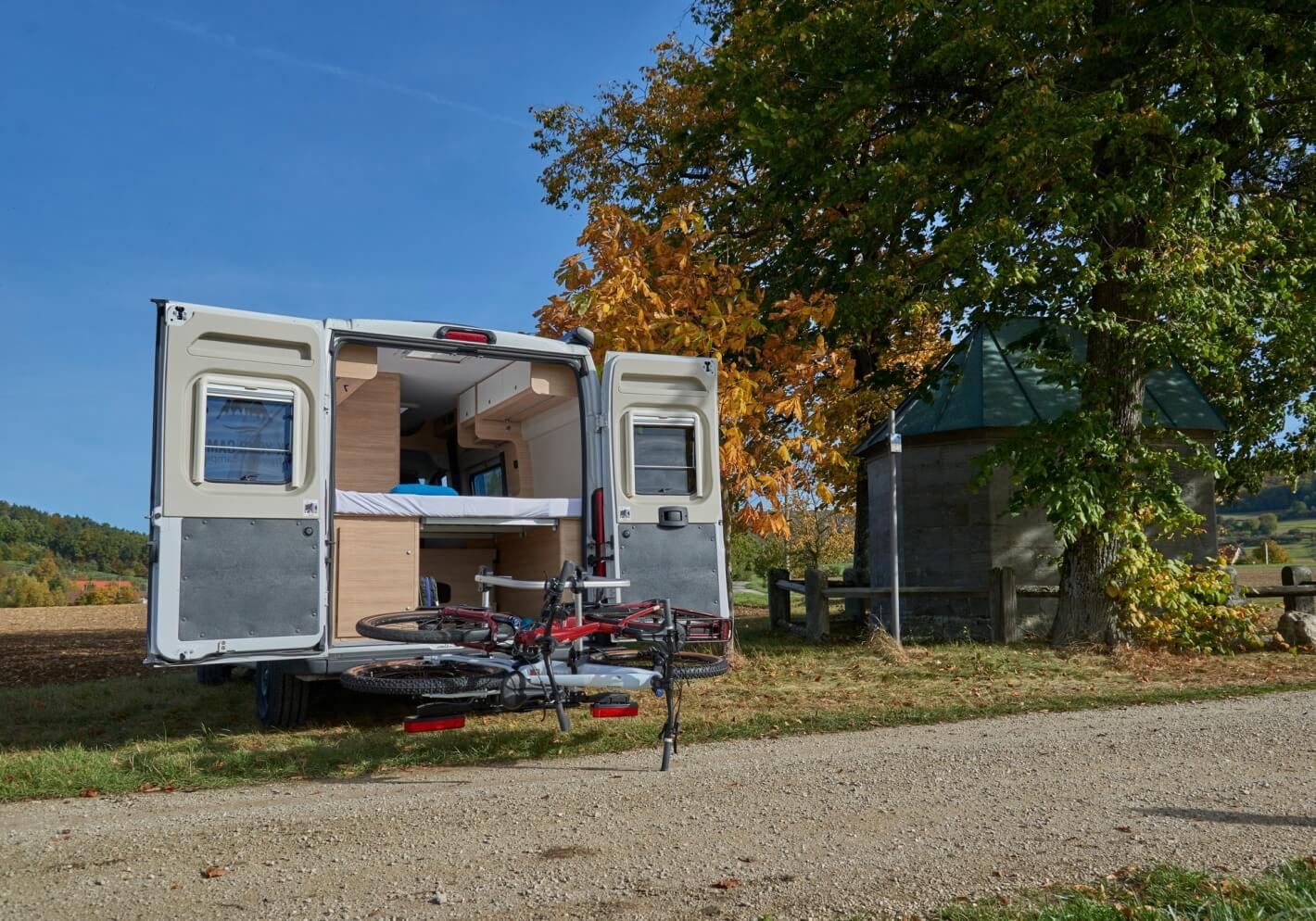

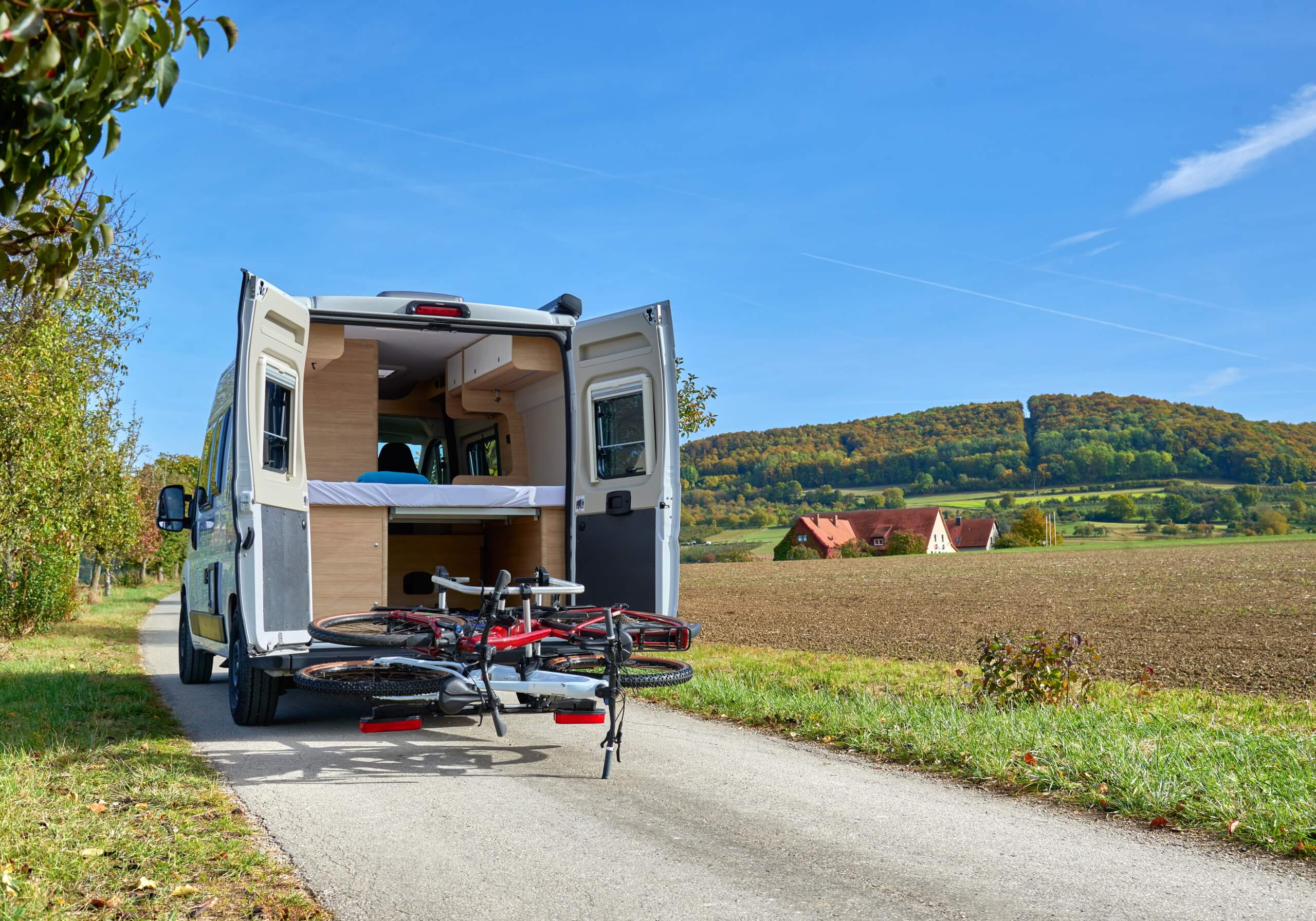

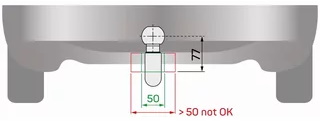

This rack tilts to 90 degrees, making it especially suitable for vans with either vertical tailgates or twin rear doors - think Transporter, Transit, Ducato and Sprinter, for example. Because the tow ball fixing is lower profile than the Uebler i series, this rack is also suitable for vans with twin rear doors and very deep tailgates (where the tailgate or doors may catch on a larger tow ball fitting). Because of the 90 degree tilt the outer bike's handlebars may well end up resting on the ground. This isn't a major problem, and you can protect the handlebar end, but it's as well to be aware of this before purchasing the H31S.

If you haven't fitted a typical tow bar carrier before you're unlikely to appreciate the significant benefits of carrying it to the tow ball, and fitting it, from what is basically a vertical position rather than a horizontal position. A typical bike carrier imposes considerable strain on your back as you walk it towards the tow ball, with the carrier tending to bump against your shins or knees unless you're strong enough to hold it with straight arms. In contrast you walk Uebler's H series onto the tow ball, standing upright, then move it past the vertical and push it down until it clicks into position. The patented iQ fitting automatically adjusts and self-tensions for your particular tow ball. Fitting couldn’t really be faster or easier.

Other features and specifications:

• Tilting is done via a foot-operated lever below the number plate, so both hands are free to hold the outer bike and lower the load until it reaches the tilt-stop.
• The iQ tow bar fitting system includes a reassuring green indicator which shows when the rack is correctly fitted on the tow ball.
• Each bike holder arm is very easily fitted, repositioned or removed with only one hand, leaving the other hand free to support the bike. Position the bike holder arms wherever they can get a good grip on the bike frame or seat post without the risk of friction damage to bike paintwork.
• Each S bike holder arm is lockable - the lock works when the knob is under tension, in other words when tensioned against a clamped bike frame. The Z bike holder arms, with reinforced straps for large frames, are shown in the accessory list below.
• Maximum bike frame diameter for the S bike holder arms: 75mm round tube, 75 x 45mm oval tube.
• The H31S has 190mm between the wheel tray centres for bikes 1 and 2, then 180mm between bikes 2 and 3, and 180mm between bikes 3 and 4.
• The maximum permitted load depends on the tow ball nose weight - 55kg for a nose weight of 75kg, 60kg for a nose weight of 80kg.
• The wheel trays are particularly wide - making them suitable for wider tyres.
• Wheel straps for tyres up to 3" are supplied as standard; longer straps for tyres up to 4.5" are shown in the accessories list below.
• The lights are 13 pin ‘5 function’, including fog lights and a reversing light; in any event we will include free of charge (unless you know you don't need this and you 'untick the box') the lighting adapter you will need if you have a 7 pin lighting socket. Note that the fog lights should work with a 7 pin system, but the reversing light won't work.
• Everything is lockable; the rack is locked to the car and each bike is locked to the rack, all using the same key.
• A loading ramp and storage cover are available as accessories.
• There's a full spares programme.
• Dimensions when folded (W x H x D): 83 x 21 x 85cm
• Dimensions when unfolded (W x H x D): 128 x 73 x 88cm
• 3 year warranty.
• Made in Germany. Everything except the lighting units and wiring, even the plastic parts, is made in the factory in Forchheim in Bavaria, Germany.

Uebler H series are part of our 90 day exchange scheme; see the tab for full details.
